The High Pressure Dual-Disc Line Filters by Autoclave Engineers are essential for industrial, chemical processing, aerospace, and nuclear applications. Featuring a dual-disc design, these filters effectively trap large contaminant particles upstream, preventing clogging of downstream elements. Crafted from high-quality 316 Stainless Steel and 300 Series Stainless Steel, these filters offer durability and high performance. With a pressure rating of 60000 psi and micron sizes ranging from 35/65 to 5/10, these filters ensure efficient filtration to safeguard your systems. Easily replaceable filter elements and precise engineering make these filters a reliable choice for critical applications.
Product Specifications
Additional Information 0
The PTFE membrane filtration media is housed in a polypropylene element which incorporates a positive double o-ring click-lock seal and is 100% integrity tested for reliable performance.Absolute bacteria and particulate retention for critical integrity.With high efficiency and low pressure drop these filters provide efficient, cost effective performance for absolute validated filtration in compressed air or gas prior to incidental product contact. There is no better filter for your critical process filtration needs.
Applications 0
Food Processing | Beverage | Dairy | Biotechnology | Hospitals | Pharmaceuticals
Financing Approve Payments
Finance with Approve Payments
Materials Of Construction Optional Body Housing Materials
1.4404 Quality 316L Stainless
Materials Of Construction Optional Drain And Vent Connections Ma
1/4 in BSPP
Materials Of Construction Optional Element To Housing Connection
Dual O-Ring Positive Click Lock Seal
Materials Of Construction Optional Endcaps Element Materials
Polypropylene
Materials Of Construction Optional Inlet And Outlet Connections
Tri-Clamp Sanitary
Materials Of Construction Optional Media Element Materials
Hydrophobic PTFE Membrane
Materials Of Construction Optional Media Support Element Materia
Polypropylene
Materials Of Construction Optional Polishing Housing Materials
Passivated and Polished to Grade Ra <1.6 µm
Materials Of Construction Optional Seals Element Materials
Dual Silicone O-Rings
Materials Of Construction Optional Seals Housing Materials
Consult Factory
Materials Of Construction Standard Body Housing Materials
1.4301 Quality 304 Stainless
Materials Of Construction Standard Drain And Vent Connections Ma
1/4 in BSPP
Materials Of Construction Standard Element To Housing Connection
Dual O-Ring Positive Click Lock Seal
Materials Of Construction Standard Endcaps Element Materials
Polypropylene
Materials Of Construction Standard Inlet And Outlet Connections
NPT (Female)
Materials Of Construction Standard Media Element Materials
Hydrophobic PTFE Membrane
Materials Of Construction Standard Media Support Element Materia
Polypropylene
Materials Of Construction Standard Polishing Housing Materials
Passivated and Polished to Grade Ra <1.6 µm
Materials Of Construction Standard Seals Element Materials
Dual Silicone O-Rings
Materials Of Construction Standard Seals Housing Materials
Aseptic EPDM
Note Note
All materials conform to 21CFR Part 177 of the US code of Federal Regulations and USP Class VI Biological test for plastics.
Performance Specifications Maximum Continuous Operating Temperat
140 ºF
Performance Specifications Maximum Design Operating Pressure
232 psig
Performance Specifications Maximum Steam Sterilization Temperatu
257 ºF
Performance Specifications Particle Removal At 100 Pleated Depth
0.2 Micron
Specifications Filter Type
Membrane
Specifications Shipping Weight
2.3 lb | 5.1 lb

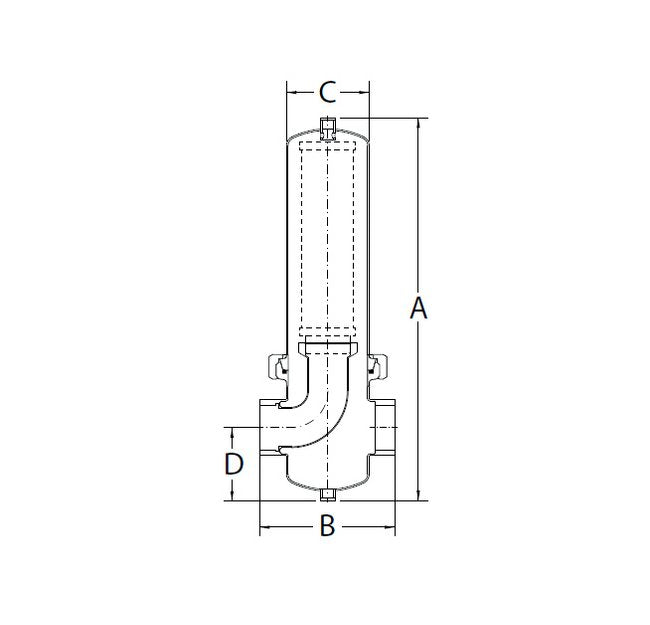

Technical Specification Dimension A
9.444 in
Technical Specification Dimension B
4.921 in
Technical Specification Dimension C
2.756 in
Technical Specification Dimension D
2.239 in
Technical Specification Inlet And Outlet Connection Size
3/4 in NPTF
Technical Specification Maximum Rated Flow
60 scfm | 102 Nm³/h
Technical Specification Replacement Element Kit
E 102 SM
