The High Pressure Dual-Disc Line Filters by Autoclave Engineers are essential for industrial, chemical, aerospace, and nuclear applications. Featuring a dual-disc design, these filters effectively trap large contaminants upstream, preventing clogs and ensuring seamless downstream filtration. Made with 316 Stainless Steel body and cover, along with 300 Series Stainless Steel filter elements, these filters offer exceptional durability and longevity. With a pressure rating of 60000 psi and micron size options of 10/35 or 5/10, these filters provide precise filtration for diverse needs. Easy to replace and stocked for prompt service, these filters are a reliable choice for critical applications.
Product Specifications
Drilling Positions Dimension B
16.7 mm
Drilling Positions Dimension C
18.5 mm
Drilling Positions Dimension D
1.8 mm
Drilling Positions Dimension E
38 mm
Drilling Positions Dimension F
17.5 mm
Drilling Positions Dimension G
13 mm
Drilling Positions Dimension H
13 mm
Manufacturing Notes 0

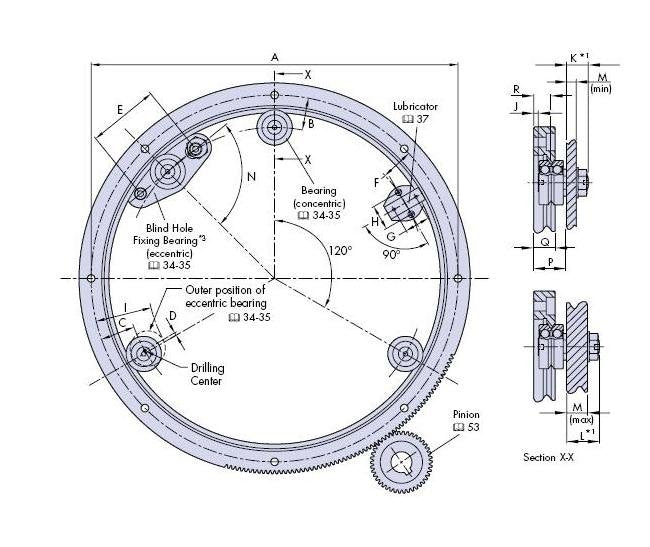

For Dimension K and L : Short or long stud lengths are available for each size of bearing 34-35. Choose according to the required mounting plate thickness.For 2 : Exact theoretical values have been given for `B`, `C` and `D`. Positional accuracy of dimension `B` will determine the axis of the ring. Positional accuracy for dimensions `C` and `D` are not normally critical. Holes for bearing studs should be reamed to tolerance F6 for a sliding fit.For Drilling Position : The eccentric blind hole fixing bearing cannot be used with the RIS 182 ring slide as it clashes with the ring.
Specifications Dimension A
148 mm
Specifications Dimension I
30.1 mm
Specifications Dimension J
2.4 mm
Specifications Dimension K
7.4 mm
Specifications Dimension L
14 mm
Specifications Dimension M Max
10 mm
Specifications Dimension M Min
2.4 mm
Specifications Dimension N
90 mm
Specifications Dimension P
14.75 mm
Specifications Dimension Q
10 mm
Specifications Dimension R
8 mm
Specifications For Use With Bearing
J18
