High Pressure E Series Drain - BEKOMAT Specialty Condensate Drains

Name: High Pressure E Series Drain - BEKOMAT Specialty Condensate Drains
Brand: Compressed Air Systems, Inc.
SKU: CLE-0ac806
Price: 5105.0 USD
Availability: OutOfStock

SKU:CLE-0ac806

Efficient high-pressure condensate drain with auto-loss prevention, stainless steel construction, and wide temperature range. Ideal for demanding industrial settings.

$5,105.00

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

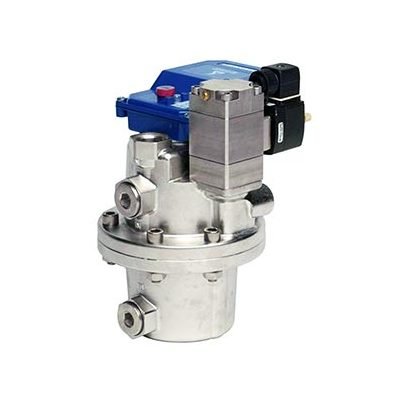

The BEKOMAT High Pressure E Series Condensate Drain is an essential component for high-pressure systems, featuring an automatic zero-loss drain and a durable Viton® diaphragm. With a maximum working pressure of 912 psi and a wide operating temperature range from 33°F to 140°F, this drain ensures efficient condensate management. Constructed with stainless steel housing and equipped with inlet/outlet connections of 3 x 3/4", this drain is designed for lasting performance in industrial environments. Suitable for compressor capacities up to 4,500 cfm, dryer capacities up to 9,000 cfm, and filter capacities up to 45,000 cfm, this drain is reliable and efficient for demanding applications.

Product Specifications

Financing Approve Payments

Finance with Approve Payments

Specifications Compressor Capacity

4,500 cfm

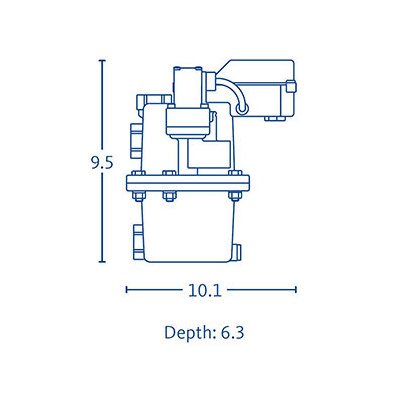

Specifications Dimension A

9.5 in

Specifications Dimension B

10.1 in

Specifications Dryer Capacity

9,000 cfm

Specifications Filter Capacity

45,000 cfm

Specifications Housing Material

Stainless Steel

Specifications Inletoutlet Connections

3 x 3/4"

Specifications Maximum Working Pressure

912 psi

Specifications Max Working Temperature

140ÂºF

Specifications Min Working Pressure

12 psi

Specifications Min Working Temperature

33ÂºF

Specifications Web Price

5105 USD

Specifications Weight

7.5 lbs
