High Pressure Elbow Fittings - Autoclave Engineers
High Pressure Elbow Fittings - Autoclave Engineers
SKU:FIX-cdb2fa
Precision-engineered Autoclave Engineers High Pressure Elbow Fittings, rated at 60000 psi, ensure reliable and leak-free connections for high-pressure systems.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
High Pressure Elbow Fittings - Autoclave Engineers
$59.99
Quantity: 1
Claim Your Seller Account
High Pressure Elbow Fittings - Autoclave Engineers
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Autoclave Engineers High Pressure Elbow Fittings are precision-engineered for superior performance in high-pressure applications. With a pressure rating of 60000 psi, these fittings ensure a secure and leak-free connection. Featuring a durable construction and precise dimensions, these fittings guarantee a reliable and safe solution for your high-pressure system needs. Compliant with industry standards and designed for ease of installation, Autoclave Engineers High Pressure Elbow Fittings are the ideal choice for demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Manufacturing Notes 0
For 1: Fixed center carriages will experience a reduction in preload or a slight clearance as they pass between the curves and straights on a track system, but this is rarely an issue. This clearance is detailed on 57. Please note the FCC25 159 has a larger than normal clearance. Bogie carriages 47 are not subject to clearance.For 2: Offset holes in carriage for eccentric bearings necessitate adjustment rotation in the direction shown.For 3: It is recommended that carriages are fitted with lubricators. The quantity of lubricators may be reduced in systems with many carriages or where the bleed lubrication facility is used.For 4: Dowel holes V1 define the center and may be used for location purposes. They are not included as standard on the corrosion resistant version, but are available on special request.For 5: CHK controlled height carriages use CHK bearings and are supplied in sets, matched by their E dimension. It is recommended to specify CHK for precision applications or where consistent carriage heights are important. CHK is standard for carriages with DR bearings.For 6: The W dimension is greater for carriages with floating bearings - see Wf in the table. Dimensions D and E will change for carriages with floating bearings. The amount of float is indicated by dimension B 1

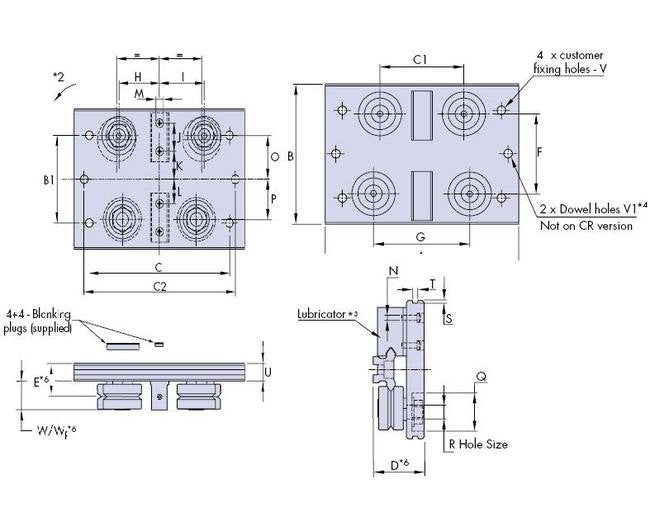

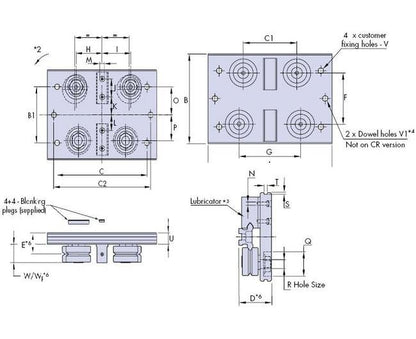

Specifications Dimension A
250 mm
Specifications Dimension B
185 mm
Specifications Dimension B1
100 in
Specifications Dimension C
205 mm
Specifications Dimension C1
130 mm
Specifications Dimension C2 001
225 mm
Specifications Dimension D
58.5 mm
Specifications Dimension E
39 mm
Specifications Dimension F
118.5 mm
Specifications Dimension G
142.82 mm
Specifications Dimension H
68.26 mm
Specifications Dimension I
74.57 mm
Specifications Dimension J
33 mm
Specifications Dimension K
44 mm
Specifications Dimension L
40 mm
Specifications Dimension M
8.0 mm
Specifications Dimension M Depth
6.0 mm
Specifications Dimension N
3.8 mm
Specifications Dimension O
63.76 mm
Specifications Dimension P
59.25 mm
Specifications Dimension Q
32.1 mm
Specifications Dimension Q Depth
13.5 mm
Specifications Dimension R Hole Size F6
14 mm
Specifications Dimension R Tolerance Hole Size F6
+0.016 mm | +0.027 mm
Specifications Dimension S
4 in
Specifications Dimension T
8 mm
Specifications Dimension U
20 mm
Specifications Dimension V
M10
Specifications Dimension V1 K6
10 mm
Specifications Dimension V1 Tolerance K6
- 0.007 mm | +0.002 mm
Specifications Dimension W
34.7 mm
Specifications Dimension Wf
37.2 mm
Specifications For Use With Ring Slides And Curved Segments
R76 1267 R360/R180/R90
Specifications For Use With Track System
TR76 1267
Specifications Weight
4050 g
