High Pressure Elbow Fittings - Autoclave Engineers
High Pressure Elbow Fittings - Autoclave Engineers
SKU:FIX-47f76a
Enhance high-pressure systems with Autoclave Engineers' precision High Pressure Elbow Fittings. Exceed industry standards with a 43000 psi rating and robust construction.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High Pressure Elbow Fittings - Autoclave Engineers
$129.99
Quantity: 1
Claim Your Seller Account
High Pressure Elbow Fittings - Autoclave Engineers
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your high-pressure system with precision-engineered Autoclave Engineers High Pressure Elbow Fittings. Designed for seamless integration and optimal performance, these fittings feature a robust construction, including a pressure rating of 43000 psi, ensuring reliability under extreme conditions. With a perfect balance of dimensions, these fittings exceed industry standards with a minimum opening of 0.438 inches and tubing engagement depth of 1.62 inches. Trust Autoclave for exceptional quality and durability for your critical applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Manufacturing Notes 0

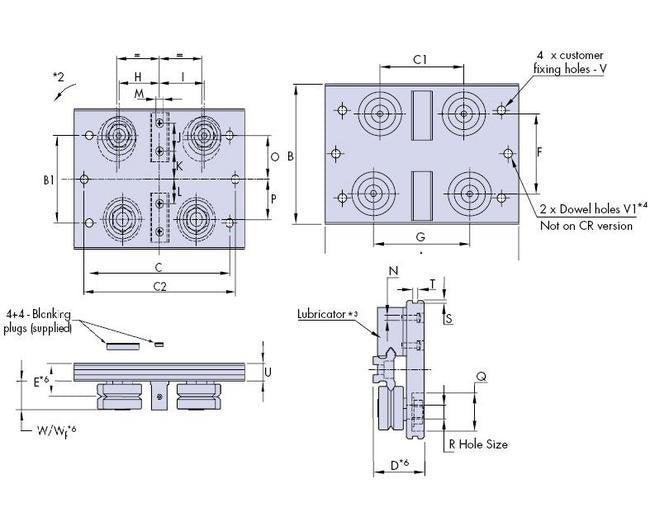

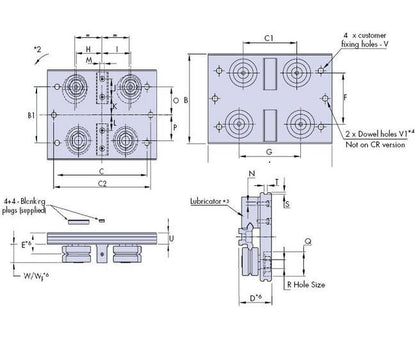

For 1: Fixed center carriages will experience a reduction in preload or a slight clearance as they pass between the curves and straights on a track system, but this is rarely an issue. This clearance is detailed on 57. Please note the FCC25 159 has a larger than normal clearance. Bogie carriages 47 are not subject to clearance.For 2: Offset holes in carriage for eccentric bearings necessitate adjustment rotation in the direction shown.For 3: It is recommended that carriages are fitted with lubricators. The quantity of lubricators may be reduced in systems with many carriages or where the bleed lubrication facility is used.For 4: Dowel holes V1 define the center and may be used for location purposes. They are not included as standard on the corrosion resistant version, but are available on special request.For 5: CHK controlled height carriages use CHK bearings and are supplied in sets, matched by their E dimension. It is recommended to specify CHK for precision applications or where consistent carriage heights are important. CHK is standard for carriages with DR bearings.For 6: The W dimension is greater for carriages with floating bearings - see Wf in the table. Dimensions D and E will change for carriages with floating bearings. The amount of float is indicated by dimension B 1
Specifications Dimension A
55 mm
Specifications Dimension B
40 mm
Specifications Dimension B1
25 in
Specifications Dimension C
48 mm
Specifications Dimension C1
20 mm
Specifications Dimension C2 001
45 mm
Specifications Dimension D
19 mm
Specifications Dimension E
12.8 mm
Specifications Dimension F
21.9 mm
Specifications Dimension G
23.84 mm
Specifications Dimension H
10.27 mm
Specifications Dimension I
13.56 mm
Specifications Dimension J
6.5 mm
Specifications Dimension K
8.8 mm
Specifications Dimension L
7.8 mm
Specifications Dimension M
4.5 mm
Specifications Dimension M Depth
4.5 mm
Specifications Dimension N
2.7 mm
Specifications Dimension O
11.89 mm
Specifications Dimension P
10.94 mm
Specifications Dimension Q
12.5 mm
Specifications Dimension Q Depth
4.8 mm
Specifications Dimension R Hole Size F6
4 mm
Specifications Dimension R Tolerance Hole Size F6
+0.010 mm | +0.018 mm
Specifications Dimension S
1 in
Specifications Dimension T
3 mm
Specifications Dimension U
7.34 mm
Specifications Dimension V
M4
Specifications Dimension V1 K6
4 mm
Specifications Dimension V1 Tolerance K6
+0.002 mm | -0.006 mm
Specifications Dimension W
10.1 mm
Specifications For Use With Ring Slides And Curved Segments
R12 127 R360/R180/R90
Specifications For Use With Track System
TR12 127
Specifications Weight
70 g
