High Pressure Elbow Fittings - Autoclave Engineers F250C
High Pressure Elbow Fittings - Autoclave Engineers F250C
SKU:FIX-799b43
Discover Autoclave Engineers' High Pressure Elbow Fittings for reliable and secure connections in demanding applications. Pressure rating: 60000 psi.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High Pressure Elbow Fittings - Autoclave Engineers F250C
$89.99
Quantity: 1
Claim Your Seller Account
High Pressure Elbow Fittings - Autoclave Engineers F250C
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Designed for precision and reliability, the Autoclave Engineers High Pressure Elbow Fittings in F250C connection type feature a sturdy construction suited for demanding applications. With a pressure rating of 60000 psi, these fittings ensure secure connections with minimal opening requirements. The fittings come complete with glands and collars, ensuring a hassle-free installation process. Compliant with industry standards, these fittings guarantee optimal performance and longevity in high-pressure environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Manufacturing Notes 0
For 1: Fixed center carriages will experience a reduction in preload or a slight clearance as they pass between the curves and straights on a track system, but this is rarely an issue. This clearance is detailed on 57. Please note the FCC25 159 has a larger than normal clearance. Bogie carriages 47 are not subject to clearance.For 2: Offset holes in carriage for eccentric bearings necessitate adjustment rotation in the direction shown.For 3: It is recommended that carriages are fitted with lubricators. The quantity of lubricators may be reduced in systems with many carriages or where the bleed lubrication facility is used.For 4: Dowel holes V1 define the center and may be used for location purposes. They are not included as standard on the corrosion resistant version, but are available on special request.For 5: CHK controlled height carriages use CHK bearings and are supplied in sets, matched by their E dimension. It is recommended to specify CHK for precision applications or where consistent carriage heights are important. CHK is standard for carriages with DR bearings.For 6: The W dimension is greater for carriages with floating bearings - see Wf in the table. Dimensions D and E will change for carriages with floating bearings. The amount of float is indicated by dimension B 1

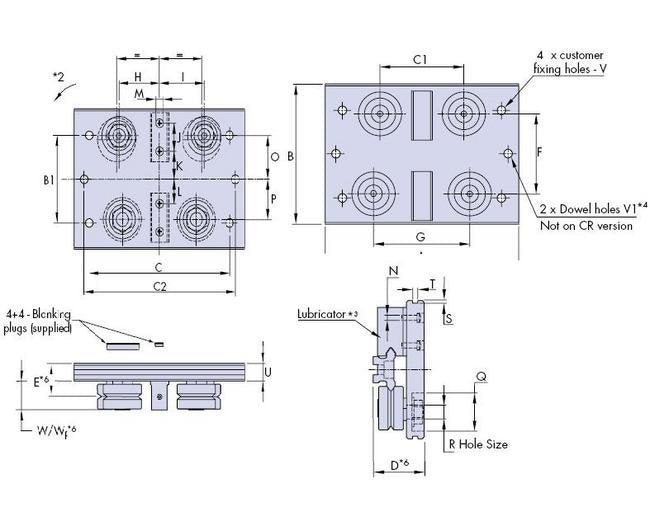

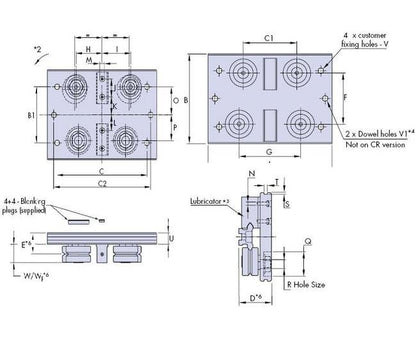

Specifications Dimension A
150 mm
Specifications Dimension B
116 mm
Specifications Dimension B1
75 in
Specifications Dimension C
125 mm
Specifications Dimension C1
70 mm
Specifications Dimension C2 001
130 mm
Specifications Dimension D
38.5 mm
Specifications Dimension E
26 mm
Specifications Dimension F
71.9 mm
Specifications Dimension G
78.8 mm
Specifications Dimension H
36.64 mm
Specifications Dimension I
42.16 mm
Specifications Dimension J
22 mm
Specifications Dimension K
25.5 mm
Specifications Dimension L
23 mm
Specifications Dimension M
5.3 mm
Specifications Dimension M Depth
4.5 mm
Specifications Dimension N
3.2 mm
Specifications Dimension O
38.25 mm
Specifications Dimension P
35.94 mm
Specifications Dimension Q
25 mm
Specifications Dimension Q Depth
8.7 mm
Specifications Dimension R Hole Size F6
10 mm
Specifications Dimension R Tolerance Hole Size F6
+0.013 mm | +0.022 mm
Specifications Dimension S
2 in
Specifications Dimension T
6 mm
Specifications Dimension U
14.5 mm
Specifications Dimension V
M8
Specifications Dimension V1 K6
8 mm
Specifications Dimension V1 Tolerance K6
- 0.007 mm | +0.002 mm
Specifications Dimension W
21.3 mm
Specifications Dimension Wf
23.2 mm
Specifications For Use With Ring Slides And Curved Segments
R44 612 R360/R180/R90
Specifications For Use With Track System
TR44 612
Specifications Weight
1100 g
