High Pressure Elbow Fittings - Autoclave Engineers F562C40 Series
High Pressure Elbow Fittings - Autoclave Engineers F562C40 Series
SKU:FIX-45fc6b
Explore the Autoclave Engineers F562C40 High Pressure Elbow Fittings for reliable, leak-free connections under extreme pressures up to 40000 psi. Guaranteed precision and durability.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
High Pressure Elbow Fittings - Autoclave Engineers F562C40 Series
$69.99
Quantity: 1
Claim Your Seller Account
High Pressure Elbow Fittings - Autoclave Engineers F562C40 Series
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience uncompromising quality and precision with the Autoclave Engineers High Pressure Elbow Fittings from the F562C40 series. Designed to withstand extreme pressures up to 40000 psi, these fittings guarantee leak-free connections and optimal performance. Crafted with meticulous attention to detail, they feature an outside diameter tube of 14.29mm, ensuring a secure fit. With a block thickness of 1.50 inches and superior tubing engagement depth of 0.84 inches, these fittings provide unparalleled reliability in high-pressure systems. Trust Autoclave Engineers for top-notch fittings that exceed industry standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Manufacturing Notes 0

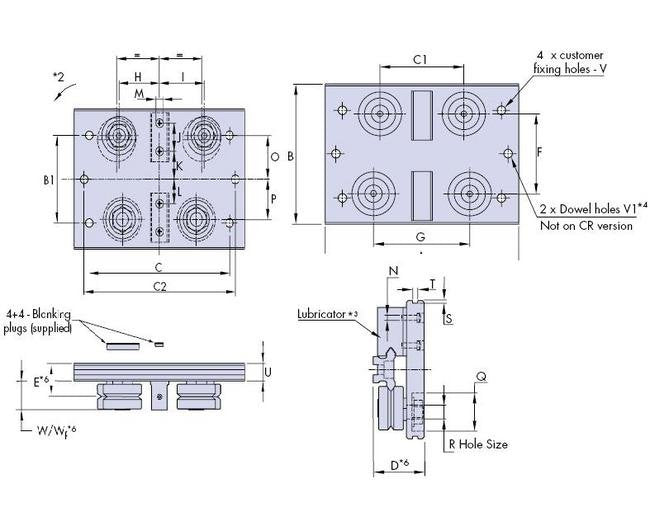

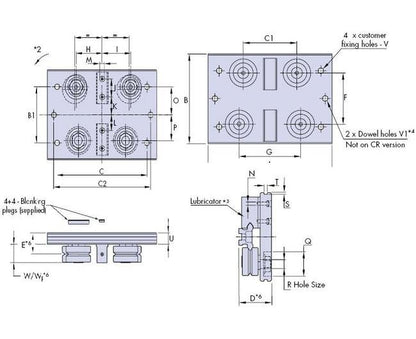

For 1: Fixed center carriages will experience a reduction in preload or a slight clearance as they pass between the curves and straights on a track system, but this is rarely an issue. This clearance is detailed on 57. Please note the FCC25 159 has a larger than normal clearance. Bogie carriages 47 are not subject to clearance.For 2: Offset holes in carriage for eccentric bearings necessitate adjustment rotation in the direction shown.For 3: It is recommended that carriages are fitted with lubricators. The quantity of lubricators may be reduced in systems with many carriages or where the bleed lubrication facility is used.For 4: Dowel holes V1 define the center and may be used for location purposes. They are not included as standard on the corrosion resistant version, but are available on special request.For 5: CHK controlled height carriages use CHK bearings and are supplied in sets, matched by their E dimension. It is recommended to specify CHK for precision applications or where consistent carriage heights are important. CHK is standard for carriages with DR bearings.For 6: The W dimension is greater for carriages with floating bearings - see Wf in the table. Dimensions D and E will change for carriages with floating bearings. The amount of float is indicated by dimension B 1
Specifications Dimension A
190 mm
Specifications Dimension B
185 mm
Specifications Dimension B1
100 in
Specifications Dimension C
160 mm
Specifications Dimension C1
90 mm
Specifications Dimension C2 001
165 mm
Specifications Dimension D
58.5 mm
Specifications Dimension E
39 mm
Specifications Dimension F
118.5 mm
Specifications Dimension G
104.56 mm
Specifications Dimension H
49.13 mm
Specifications Dimension I
55.44 mm
Specifications Dimension J
33 mm
Specifications Dimension K
43 mm
Specifications Dimension L
40 mm
Specifications Dimension M
8.0 mm
Specifications Dimension M Depth
6.0 mm
Specifications Dimension N
3.8 mm
Specifications Dimension O
63.76 mm
Specifications Dimension P
59.25 mm
Specifications Dimension Q
32.1 mm
Specifications Dimension Q Depth
13.5 mm
Specifications Dimension R Hole Size F6
14 mm
Specifications Dimension R Tolerance Hole Size F6
+0.016 mm | +0.027 mm
Specifications Dimension S
4 in
Specifications Dimension T
8 mm
Specifications Dimension U
20 mm
Specifications Dimension V
M10
Specifications Dimension V1 K6
10 mm
Specifications Dimension V1 Tolerance K6
- 0.007 mm | +0.002 mm
Specifications Dimension W
34.7 mm
Specifications Dimension Wf
37.2 mm
Specifications For Use With Ring Slides And Curved Segments
R76 799 R360/R180/R90
Specifications For Use With Track System
TR76 799
Specifications Weight
3460 g
