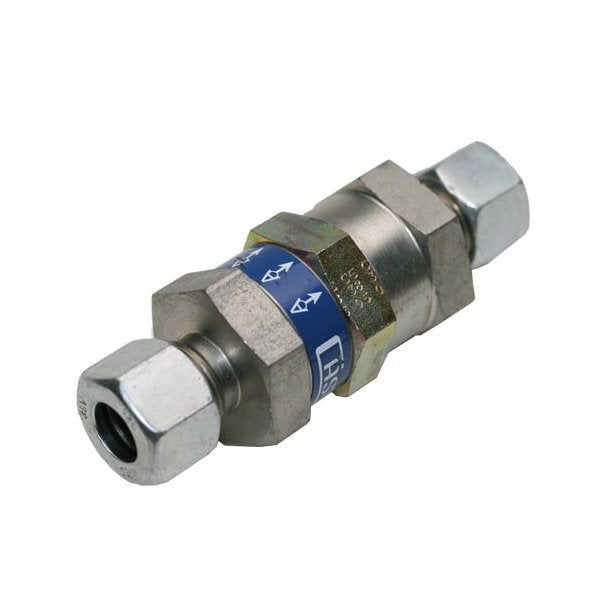

High-Pressure Equal Non Return Valve with B4 Ring
High-Pressure Equal Non Return Valve with B4 Ring
SKU:FIT-c4d2ae
Heavy-duty Equal Non Return Valve for 400 bar pressure. Stainless steel construction, precise dimensions for optimal flow control.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High-Pressure Equal Non Return Valve with B4 Ring
$89.99
Quantity: 1
Claim Your Seller Account
High-Pressure Equal Non Return Valve with B4 Ring
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

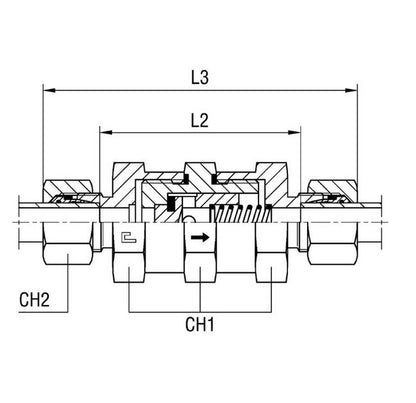

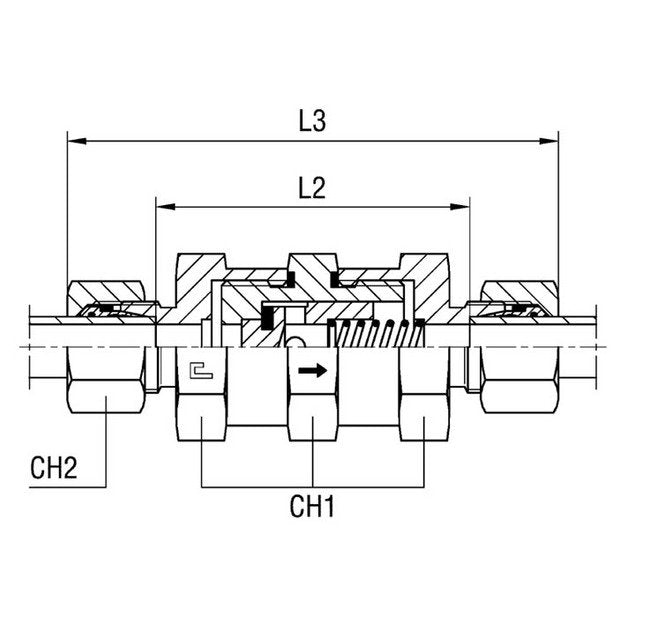

The High-Pressure Equal Non Return Valve with B4 Ring is designed for heavy-duty applications with a nominal operating pressure of 400 bar. Crafted from durable stainless steel, this valve ensures reliable performance under high pressure. With a tube diameter of 14.0 mm and precise dimensions (L2: 69 mm, L3: 104 mm, CH1: 41 mm, CH2: 27 mm), it guarantees optimal flow control. This valve features a diameter Pass. of 10 mm, making it suitable for various hydraulic systems.
Product Specifications
Specifications Ch1
41 mm
Specifications Ch2
27 mm
Specifications Diameter Pass
10 mm
Specifications L2
69 mm
Specifications L3
104 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
14.0 mm
