High-Pressure Female Non Return Valve, 400 bar, M16x1.5
High-Pressure Female Non Return Valve, 400 bar, M16x1.5
SKU:FIT-e9143f
Heavy-duty hydraulic check valve, 400 bar, M16x1.5, carbon steel construction
Regular price
$56.99
Regular price
Sale price
$56.99
Unit price
per
Initiate Order
High-Pressure Female Non Return Valve, 400 bar, M16x1.5
$56.99
Quantity: 1
Claim Your Seller Account
High-Pressure Female Non Return Valve, 400 bar, M16x1.5
$56.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

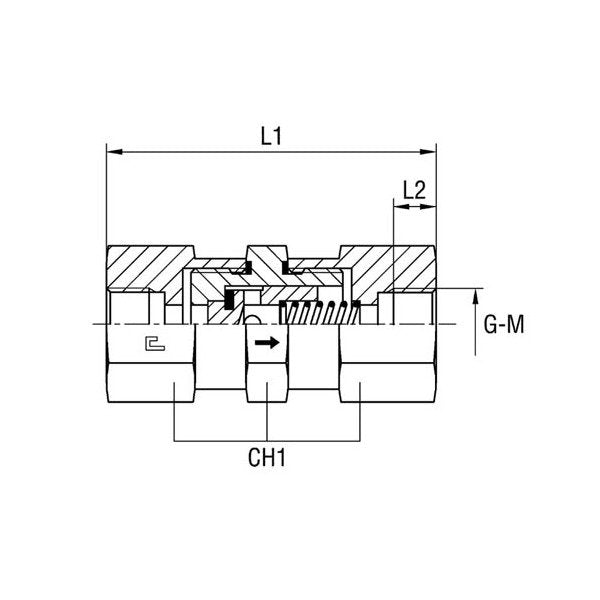

The High-Pressure Female Non Return Valve Thread Metric Parallel is a robust hydraulic check valve designed for heavy-duty applications. With a nominal operating pressure of 400 bar, this valve ensures reliable performance in demanding environments. Crafted from durable carbon steel, it features precise dimensions including L1: 88 mm, L2: 14.5 mm, CH1: 32 mm, and a pass diameter of 8 mm. Enjoy superior quality and functionality with this essential fitting.
Product Specifications
Specifications Ch1
32 mm
Specifications Diameter Pass
8 mm
Specifications L1
88 mm
Specifications L2
14.5 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
16x1.5
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
