High-Pressure Female Non Return Valve BSP Thread for Hydraulic Systems
High-Pressure Female Non Return Valve BSP Thread for Hydraulic Systems
SKU:FIT-36b137
Ensure precise flow control in high-pressure hydraulic systems with this durable carbon steel Non Return Valve. Compliant with industry standards.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
High-Pressure Female Non Return Valve BSP Thread for Hydraulic Systems
$69.99
Quantity: 1
Claim Your Seller Account
High-Pressure Female Non Return Valve BSP Thread for Hydraulic Systems
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

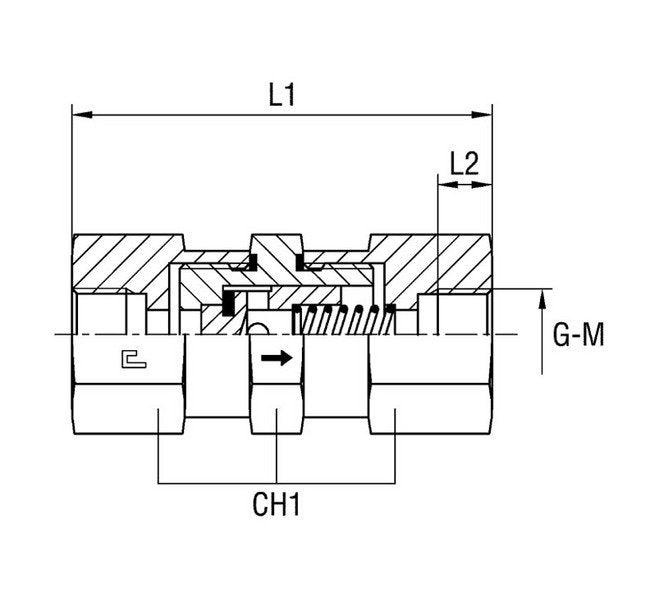

The High-Pressure Female Non Return Valve BSP Thread is designed for heavy-duty hydraulic applications with a nominal operating pressure of 250 bar. Crafted from durable carbon steel, this valve ensures reliable performance under demanding conditions. Featuring a G-Thread Size of 1 1/4, with precise measurements for L1, L2, CH1, Diameter Pass., this valve guarantees a secure fit and efficient flow control. Compliant with stringent industry standards, it is ideal for institutional and government procurement needs.
Product Specifications
Specifications Ch1
70 mm
Specifications Diameter Pass
29 mm
Specifications G Thread Size
1 1/4
Specifications L1
142 mm
Specifications L2
23.5 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Heavy Duty
