High-Pressure Female Non Return Valve Thread NPT Taper
High-Pressure Female Non Return Valve Thread NPT Taper
SKU:VAL-4a1575
Ensure reliable flow control with our high-pressure non-return valve. Heavy-duty design, 250 bar pressure.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
High-Pressure Female Non Return Valve Thread NPT Taper
$59.99
Quantity: 1
Claim Your Seller Account
High-Pressure Female Non Return Valve Thread NPT Taper
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

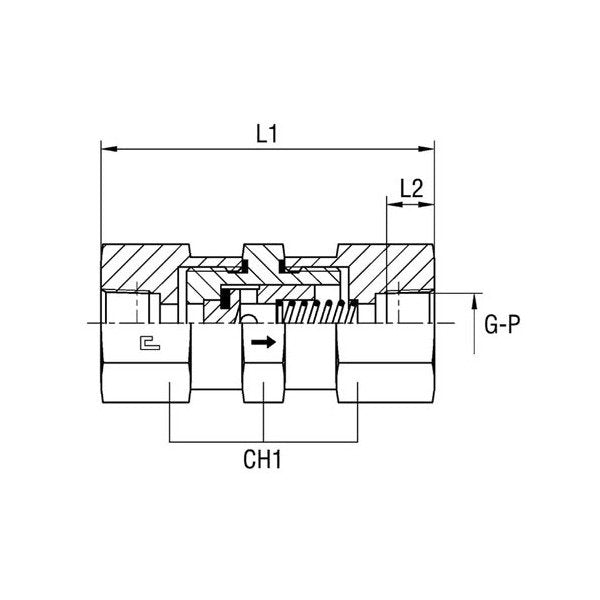

The High-Pressure Female Non Return Valve Thread NPT Taper is designed for heavy-duty applications with a nominal operating pressure of 250 bar. Crafted from durable carbon steel, this valve ensures reliable performance under high pressures. With a P-Thread Size of 1, and precise dimensions including L1: 122mm, L2: 23.5mm, and CH1: 50mm, it provides a secure fit and efficient flow control. This valve is ideal for hydraulic systems requiring a reliable non-return solution.
Product Specifications
Specifications Ch1
50 mm
Specifications Diameter Pass
18 mm
Specifications L1
122 mm
Specifications L2
23.5 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Heavy Duty
Specifications P Thread Size
1
