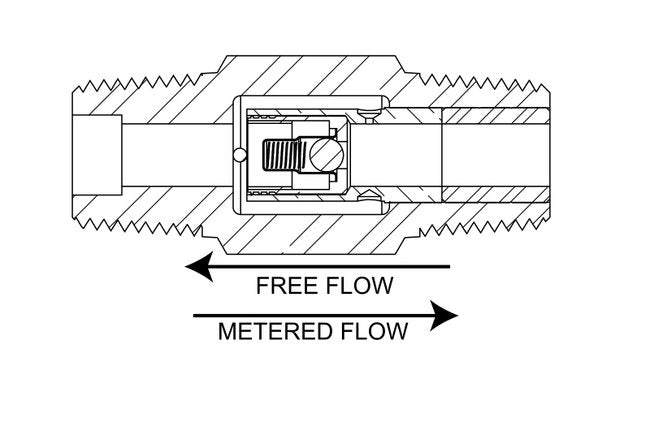

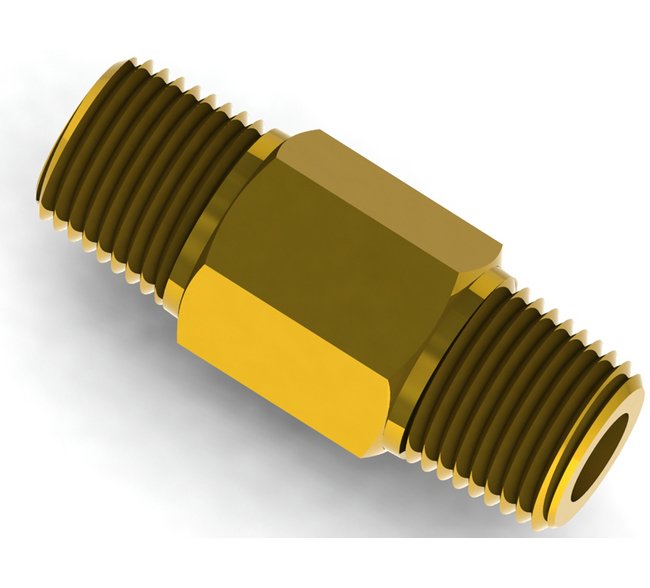

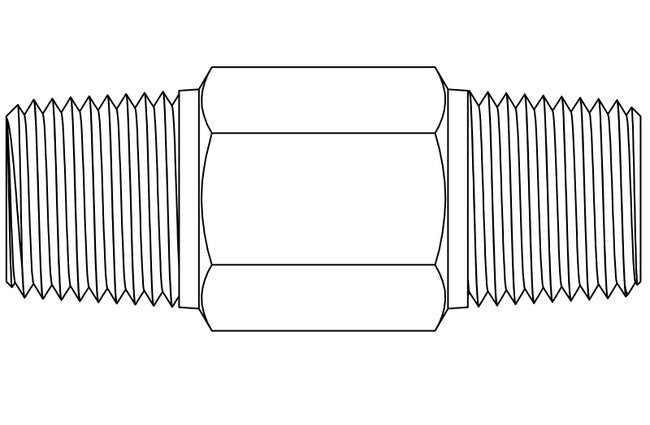

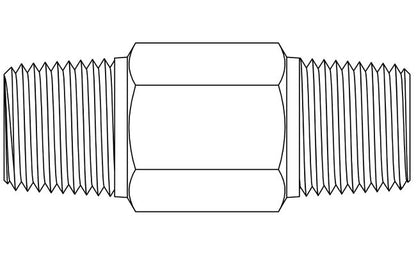

Enhance your fluid and gas control systems with our High-Pressure Fixed Flow Controls - Ball Type NPT Nipple. This precision-engineered component features an orifice diameter of 0.039 inches, ensuring accurate metered flow in one direction with a tamper-proof design. With a maximum operating pressure gauge of 2000 psig and CV ratios optimized for performance, this brass construction offers exceptional durability and longevity. Ideal for applications requiring high-pressure capacity and reliable flow control.
Product Specifications
Dimensions Orifice Diameter
0.039 in
Dimensions Total Length
1.91 in
Dimensions Width Across Flats Hex
11/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
809 to 1650 ft³/h
Flow Data Water Flow At 100 Psig
1.9 to 3.9 gpm
Specifications Additional Wetted Material
Loctite 609 / 680
Specifications Assembly Forward Cv
0.224
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.191
Specifications Connection A
1/4" NPT Male
Specifications Connection B
1/4" NPT Female
Specifications Cracking Pressure
15 psig
Specifications Cv Ratio Forward Cv Return Cv
6.79
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
2000 psig
Specifications Nominal Orifice Size
39
Specifications Orifice Cv Return
0.033
Specifications Screened
None
Specifications Seal Material
Loctite 609, 680
