High Pressure Flat Bottom Male/Female Adapters

Name: High Pressure Flat Bottom Male/Female Adapters
Brand: Linemaster Switch Corp.
SKU: HER-4e023f
Price: 45.99 USD
Availability: OutOfStock

SKU:HER-4e023f

Precision-crafted High Pressure Flat Bottom Male/Female Adapters for reliable connections in various applications.

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Our High Pressure Flat Bottom Male/Female Adapters are precision-crafted from coldworked Type 316 stainless steel, offering reliable and durable connections for adapting different sizes and types. Designed to ensure maximum mechanical strength, the male end fits connection F437FB, while the female end accommodates SW250. With a hex size of 0.63 inches and a length of 1.53 inches, these adapters meet stringent industry standards and are ideal for high-pressure applications in both consumer and institutional sectors.

Product Specifications

Specifications Circuit

SPDT DB

Specifications Constructionstandards

NEMA Type 2, 4 & 13UL Enclosure 2, 4 & 13CSA Enclosure 2, 4 & 13EN 60529 Degree of Protection IP56

Specifications Electrical Rating

Heavy pilot duty 250 Vac max. | 1/2 H.P. 125 VAC | 1 H.P. 250 VAC | 15A 125-250 VAC

Specifications Features

DriptightDusttightWatertightOiltight

Specifications Form

Specifications Note

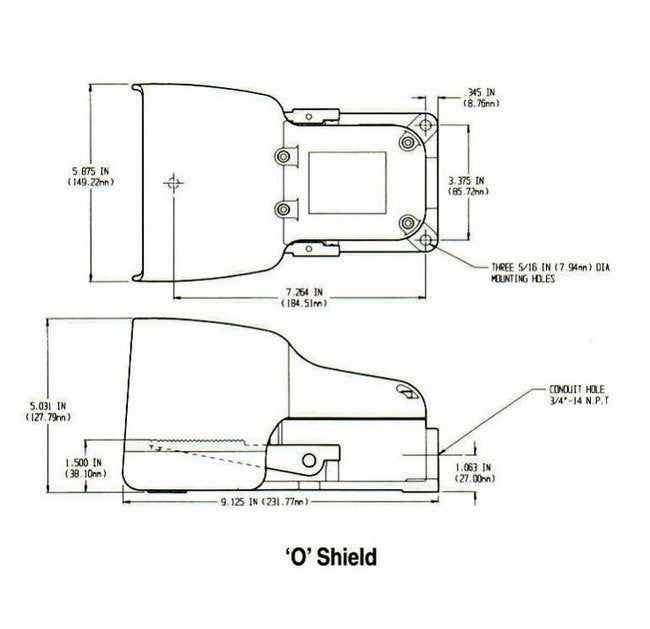

S-Denotes Momentary Contact-Press to start - release to stop, D-Denotes Maintained Contact-Press to start - Release Latch to stop, O-Denotes oversize O-shield models which accept oversized safety shoes and metatarsal foot guards.

Specifications Remarks

1st stage maintained 2nd stage Momentary DB Double break model must be wired to equal voltage sources and the same polarity. The loads should be on the same sides of the line.

Specifications Size

9 x 5 3/4 x 4 3/4 Inch

Specifications Stages

Two

Specifications Weight Approx

8 lbs
