The Multi-Flex™ 128 Series 48 Inch High Pressure Hot Tap Insertion Plug is designed for pressurized pipelines, featuring an internal stiffener and directional shoe for easy hot tap installation even around a 90-degree bend. With a nylon-reinforced polyurethane outer ply, this plug ensures durability and flexibility, allowing seamless repairs and flow stoppage. Its small deflated diameter and tough materials guarantee a long operational life, making it ideal for institutional and government procurement applications where reliable pipeline maintenance is critical.
Product Specifications
Bore Range Maximum Bore Range
4.55 in | 115.6 mm
Bore Range Minimum Bore Range
2.94 in | 74.6 mm

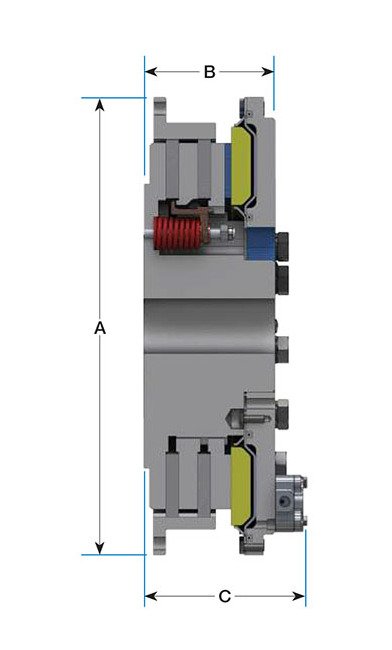

Dimensions Dimension A
22.496 in | 571.40 mm
Dimensions Dimension B
6-3/8 in | 163.3 mm
Dimensions Dimension C
7-15/16 in | 202.9 mm
Features Features
A large diaphragm provides high torque capacity throughout the life of friction discsOversized release springs ensure quick positive disengagementPlate separators reduce and minimize dragMechanical lockup function is standard on all sizes
Note Note
Consult WPT® Application Engineering for application assistance and applicable service factors.
Specifications Lining Area
540 in² | 3490 cm²
Specifications Maximum Slip Speed
1270 rpm
Specifications Maximum Speed
2000 rpm
Specifications Static Torque At 100 Pounds Per Square Inch Psi 7
157000 lbf·in | 17700 N·m
Weight And Inertia Ring And Fd Inertia
37 lb·ft² | 1.5 kg·m²
Weight And Inertia Ring And Fd Weight
31 lb | 14 kg
Weight And Inertia Total Inertia
130 lb·ft² | 5.5 kg·m²
Weight And Inertia Total Weight
400 lb | 180 kg
