High Pressure Hydraulic Hose for mineral oil & glycol base liquids. Meets SAE J517 100R2AT. Working Pressure: 4000 psi. Burst Pressure: 16000 psi.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
High Pressure Hydraulic Double Braid - 100R2AT Bulk Coils
$299.99
Quantity: 1
Claim Your Seller Account
High Pressure Hydraulic Double Braid - 100R2AT Bulk Coils
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

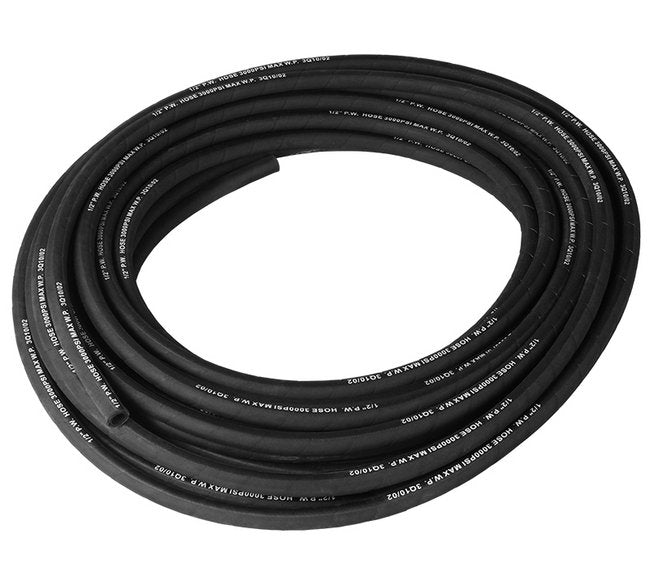

The High Pressure Hydraulic Double Braid 100R2AT Bulk Coils are designed for superior performance with mineral oil and glycol base liquids. Compliant with SAE J517 100R2AT standards, these hoses offer a working pressure of 4000 psi and a burst pressure of 16000 psi. Constructed with oil and weather-resistant synthetic rubber, featuring a temperature range from -40 to +250 ºF, and reinforced with two steel wire braids, these coils ensure durability and reliability for a wide range of hydraulic applications. Sold in convenient bulk coils.
Product Specifications
Specifications Bend Radius
5 in
Specifications Burst Pressure 70
16000 psi
Specifications Cover
Oil and Weather Resistant Synthetic Rubber
Specifications Id
3/8 in
Specifications Od
0.750 in
Specifications Package Type
Feet
Specifications Reinforcement
Two Steel Wire Braid
Specifications Temperature Range
-40 to +250 ºF
Specifications Tube
Oil Resistant Synthetic Rubber
Specifications Weight Per 100 Foot
30.9 lb
Specifications Working Pressure
4000 psi
