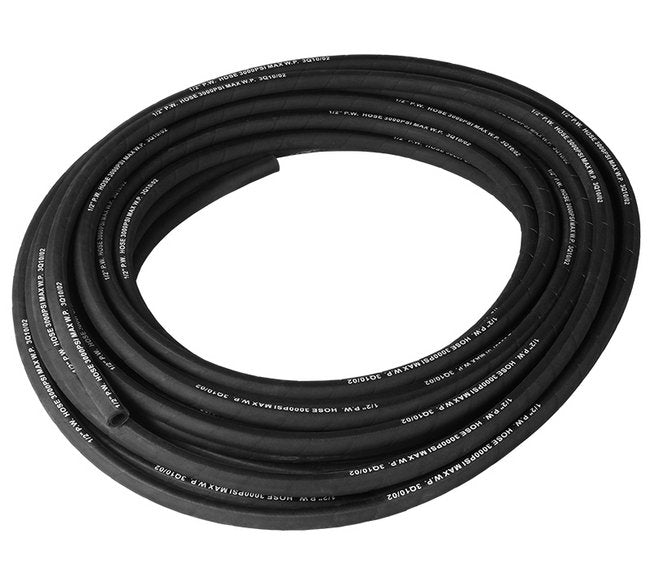

High Pressure Hydraulic Double Braid Hose - 100R2AT Bulk Coils
High Pressure Hydraulic Double Braid Hose - 100R2AT Bulk Coils
SKU:HOS-4fecac
High Pressure Hydraulic Double Braid Hose - 100R2AT, meets/exceeds SAE J517 100R2AT standards, ideal for mineral oil & glycol base liquids.
Regular price
$215.99
Regular price
Sale price
$215.99
Unit price
per
Initiate Order
High Pressure Hydraulic Double Braid Hose - 100R2AT Bulk Coils
$215.99
Quantity: 1
Claim Your Seller Account
High Pressure Hydraulic Double Braid Hose - 100R2AT Bulk Coils
$215.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Pressure Hydraulic Double Braid Hose - 100R2AT Bulk Coils is a top-tier hydraulic hose designed for mineral oil and glycol base liquids. Meeting and exceeding SAE J517 100R2AT standards, this hose boasts a temperature range of -40 to +250ºF (with peaks to 250ºF) while maintaining a working pressure of 5000 psi with a burst pressure of 20000 psi @ 70ºF. Its construction features an oil and weather-resistant synthetic rubber cover, an oil-resistant synthetic rubber tube, and two steel wire braids for optimal reinforcement. With a bend radius of 4 inches and weighing 23.5 lbs per 100 feet, this hydraulic hose ensures durability and performance in demanding applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Bend Radius
4 in
Specifications Burst Pressure 70
20000 psi
Specifications Cover
Oil and Weather Resistant Synthetic Rubber
Specifications Id
1/4 in
Specifications Od
0.61 in
Specifications Package Type
Feet
Specifications Reinforcement
Two Steel Wire Braid
Specifications Temperature Range
-40 to +250 ºF
Specifications Tube
Oil Resistant Synthetic Rubber
Specifications Weight Per 100 Foot
23.5 lb
Specifications Working Pressure
5000 psi
