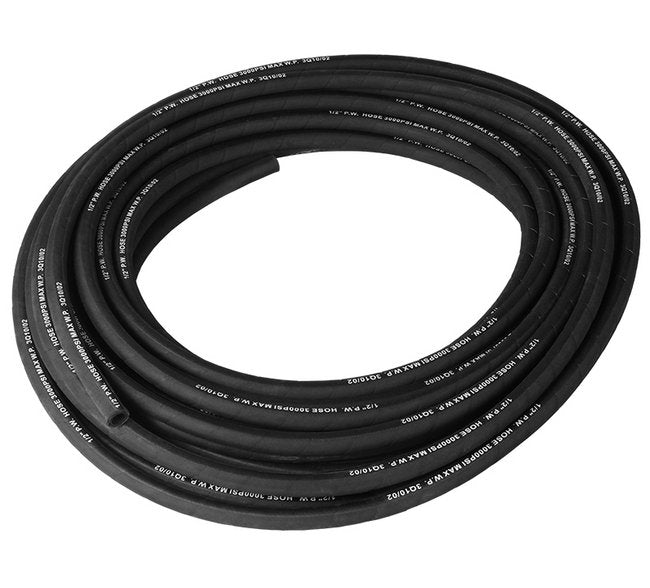

High Pressure Hydraulic Double Braid Hose - 100R2AT Bulk Coils

Name: High Pressure Hydraulic Double Braid Hose - 100R2AT Bulk Coils
Brand: Seal Fast, Inc.
SKU: HOS-338b20
Price: 220.0 USD
Availability: OutOfStock

SKU:HOS-338b20

High Pressure Hydraulic Double Braid Hose - 100R2AT Bulk Coils. Meets SAE J517 100R2AT standards. Working pressure: 3500 psi. Temperature range: -40 to +250°F.

$220.00

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The High Pressure Hydraulic Double Braid Hose - 100R2AT Bulk Coils is a top-notch hydraulic hose designed for mineral oil and glycol-based liquids. Meeting and exceeding SAE J517 100R2AT standards, this hose features a temperature range of -40 to +250°F with peaks to 250°F. With a sturdy construction that includes an oil and weather-resistant synthetic rubber cover, oil-resistant synthetic rubber tube, and two steel wire braid reinforcement, this hose delivers exceptional performance. It boasts a working pressure of 3500 psi and a burst pressure of 14000 psi @ 70°F, making it reliable in various applications. Sold in convenient bulk coils, this hose is a versatile solution for hydraulic systems.

Product Specifications

Specifications Bend Radius

7 in

Specifications Burst Pressure 70

14000 psi

Specifications Cover

Oil and Weather Resistant Synthetic Rubber

Specifications Id

1/2 in

Specifications Od

0.88 in

Specifications Package Type

Feet

Specifications Reinforcement

Two Steel Wire Braid

Specifications Temperature Range

-40 to +250 ÂºF

Specifications Tube

Oil Resistant Synthetic Rubber

Specifications Weight Per 100 Foot

42.3 lb

Specifications Working Pressure

3500 psi
