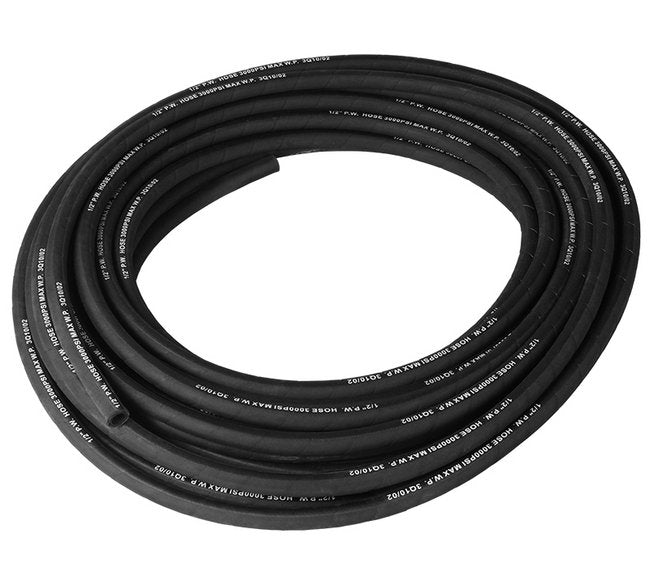

High Pressure Hydraulic Double Braid Hose - 100R2AT Bulk Coils

Name: High Pressure Hydraulic Double Braid Hose - 100R2AT Bulk Coils
Brand: Seal Fast, Inc.
SKU: HOS-e50712
Price: 499.99 USD
Availability: OutOfStock

SKU:HOS-e50712

High Pressure Hydraulic Double Braid Hose - 100R2AT Bulk Coils. Compliant with SAE J517 100R2AT standards. Working pressure 2750 psi, burst pressure 11000 psi. Oil & weather-resistant, with temperature range -40 to +250 °F.

$499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The High Pressure Hydraulic Double Braid Hose - 100R2AT Bulk Coils is a top-tier hydraulic hose designed for mineral oil and glycol-based liquids. Compliant with SAE J517 100R2AT standards, this hose features exceptional durability and performance. With a working pressure of 2750 psi and a burst pressure of 11000 psi, it ensures reliable operation in demanding environments. The hose is constructed with oil and weather-resistant synthetic rubber, along with two steel wire braids for maximum strength and flexibility. Its temperature range of -40 to +250 °F makes it versatile for various applications. Sold by the foot for convenience and flexibility.

Product Specifications

Specifications Bend Radius

8 in

Specifications Burst Pressure 70

11000 psi

Specifications Cover

Oil and Weather Resistant Synthetic Rubber

Specifications Id

5/8 in

Specifications Od

1.00 in

Specifications Package Type

Feet

Specifications Reinforcement

Two Steel Wire Braid

Specifications Temperature Range

-40 to +250 ÂºF

Specifications Tube

Oil Resistant Synthetic Rubber

Specifications Weight Per 100 Foot

51.1 lb

Specifications Working Pressure

2750 psi

High Pressure Hydraulic Double Braid Hose - 100R2AT Bulk Coils
