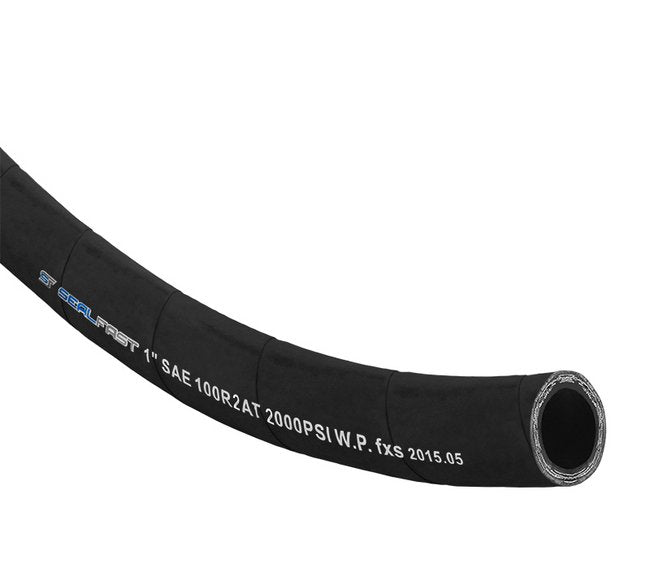

High Pressure Hydraulic Double Braid Hose - 100R2AT on Reels
High Pressure Hydraulic Double Braid Hose - 100R2AT on Reels
SKU:HOS-e32513
Premium hydraulic hose exceeding SAE J517 100R2A standards. Ideal for mineral oil and glycol-based liquids. Withstands pressures up to 4000 psi.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
High Pressure Hydraulic Double Braid Hose - 100R2AT on Reels
$69.99
Quantity: 1
Claim Your Seller Account
High Pressure Hydraulic Double Braid Hose - 100R2AT on Reels
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Pressure Hydraulic Double Braid Hose - 100R2AT on Reels is a top-tier hydraulic hose designed for mineral oil and glycol-based liquids. It exceeds SAE J517 100R2AT standards, offering exceptional performance in demanding environments. With a working pressure of 4000 psi and a burst pressure of 16000 psi @ 70°F, this hose is built to withstand extreme conditions. Featuring oil and weather-resistant synthetic rubber cover, oil-resistant synthetic rubber tube, and two steel wire braid reinforcement, this hose ensures durability and reliability. The temperature range of -40 to +250°F, with peaks to 250°F, makes it versatile for various applications. Each unit is sold by the foot, providing flexibility in usage.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Bend Radius
5 in
Specifications Burst Pressure 70
16000 psi
Specifications Cover
Oil and Weather Resistant Synthetic Rubber
Specifications Id
3/8 in
Specifications Od
0.750 in
Specifications Package Type
Feet
Specifications Reinforcement
Two Steel Wire Braid
Specifications Temperature Range
-40 to +250 ºF
Specifications Tube
Oil Resistant Synthetic Rubber
Specifications Weight Per 100 Foot
30.9 lb
Specifications Working Pressure
4000 psi
