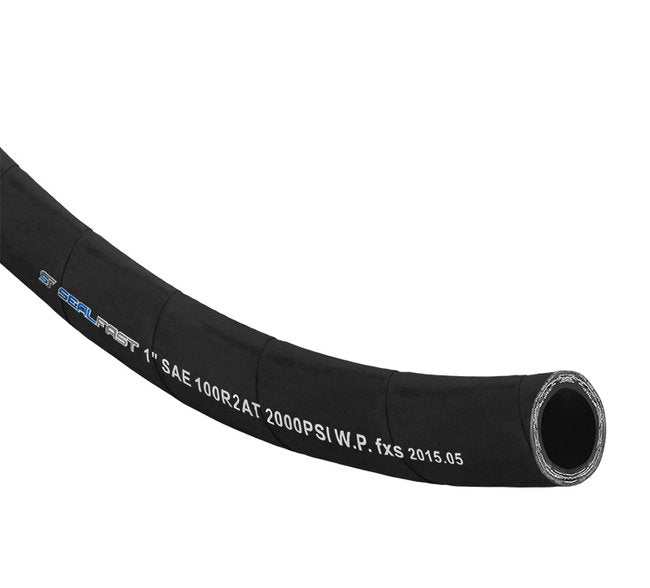

High Pressure Hydraulic Double Braid Hose - 100R2AT On Reels
High Pressure Hydraulic Double Braid Hose - 100R2AT On Reels
SKU:HOS-85f769
High Pressure Hydraulic Double Braid Hose - Exceptional performance in hydraulic systems. Meets SAE J517 100R2AT standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High Pressure Hydraulic Double Braid Hose - 100R2AT On Reels
$129.99
Quantity: 1
Claim Your Seller Account
High Pressure Hydraulic Double Braid Hose - 100R2AT On Reels
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Pressure Hydraulic Double Braid Hose - 100R2AT on Reels is a top-tier solution designed for mineral oil and glycol-based liquids in hydraulic systems. With a working pressure of 5000 psi and burst pressure of 20000 psi, this hose excels under demanding conditions. Constructed with oil and weather-resistant synthetic rubber cover, an oil-resistant synthetic rubber tube, and two steel wire braids for reinforcement, it ensures durability and longevity. Operating temperature ranges from -40 to +250 °F, meeting and exceeding SAE J517 100R2AT standards.
Product Specifications
Specifications Bend Radius
4 in
Specifications Burst Pressure 70
20000 psi
Specifications Cover
Oil and Weather Resistant Synthetic Rubber
Specifications Id
1/4 in
Specifications Od
0.61 in
Specifications Package Type
Feet
Specifications Reinforcement
Two Steel Wire Braid
Specifications Temperature Range
-40 to +250 ºF
Specifications Tube
Oil Resistant Synthetic Rubber
Specifications Weight Per 100 Foot
23.5 lb
Specifications Working Pressure
5000 psi
