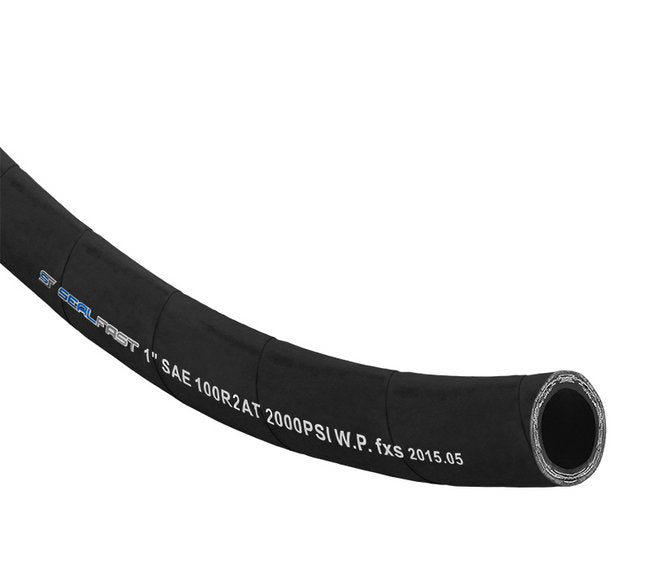

High Pressure Hydraulic Double Braid Hose - 100R2AT on Reels
High Pressure Hydraulic Double Braid Hose - 100R2AT on Reels
SKU:HOS-0e90fc
High Pressure Hydraulic Double Braid Hose - 100R2AT, exceeds SAE J517 standards, with 3500 psi working pressure and -40 to 250°F temperature range.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
High Pressure Hydraulic Double Braid Hose - 100R2AT on Reels
$189.99
Quantity: 1
Claim Your Seller Account
High Pressure Hydraulic Double Braid Hose - 100R2AT on Reels
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Pressure Hydraulic Double Braid Hose - 100R2AT on Reels is designed for mineral oil and glycol-based liquids, exceeding SAE J517 100R2AT standards. With a working pressure of 3500 psi and burst pressure of 14000 psi, this hose ensures reliable performance in demanding environments. Constructed with oil and weather-resistant synthetic rubber cover, oil-resistant tube, and two steel wire braid reinforcements, it offers superior durability. Suitable for temperatures ranging from -40 to +250 °F, it meets institutional procurement requirements for quality and performance.
Product Specifications
Specifications Bend Radius
7 in
Specifications Burst Pressure 70
14000 psi
Specifications Cover
Oil and Weather Resistant Synthetic Rubber
Specifications Id
1/2 in
Specifications Od
0.88 in
Specifications Package Type
Feet
Specifications Reinforcement
Two Steel Wire Braid
Specifications Temperature Range
-40 to +250 ºF
Specifications Tube
Oil Resistant Synthetic Rubber
Specifications Weight Per 100 Foot
42.3 lb
Specifications Working Pressure
3500 psi
