Enhance system performance with the High Pressure In-Line Hydraulic Filter - MFM Series featuring 4060 psi rating, 20 gpm flow capacity, and durable construction materials.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
High Pressure In-Line Hydraulic Filter - MFM Series
$99.99
Quantity: 1
Claim Your Seller Account
High Pressure In-Line Hydraulic Filter - MFM Series
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

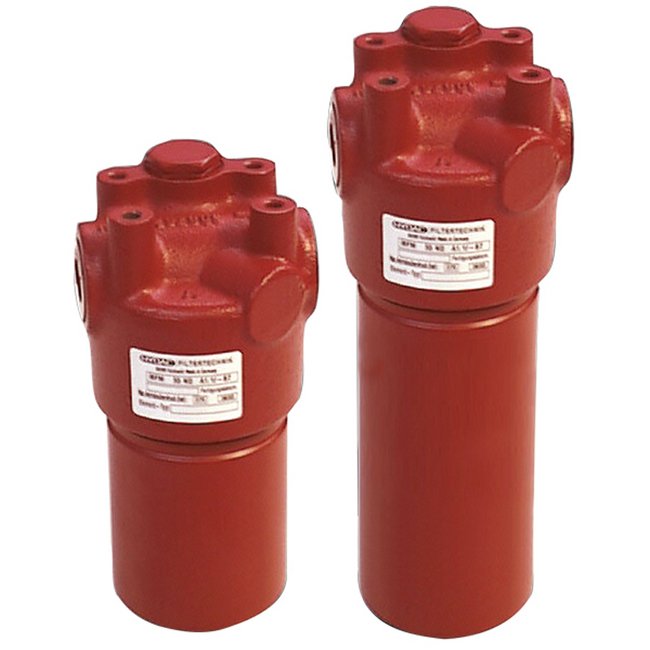

The High Pressure In-Line Hydraulic Filter from the MFM Series delivers exceptional performance with a maximum housing working pressure rating of 4060 psi. Designed with a flow capacity of 20 gpm and a filter rating of 5 µm, this filter ensures efficient filtration of hydrocarbon-based fluids. Constructed with durable materials like ductile iron and steel, it offers reliability in diverse industrial applications. The quick-response bypass valve safeguards against pressure differentials, while the fatigue pressure rating assures long-term durability. Compatible with various fluids, this filter is a cost-effective and versatile solution for hydraulic systems.
Product Specifications
Application 0
AgriculturalAutomotiveConstructionGearboxesIndustrialCommercial Municipal

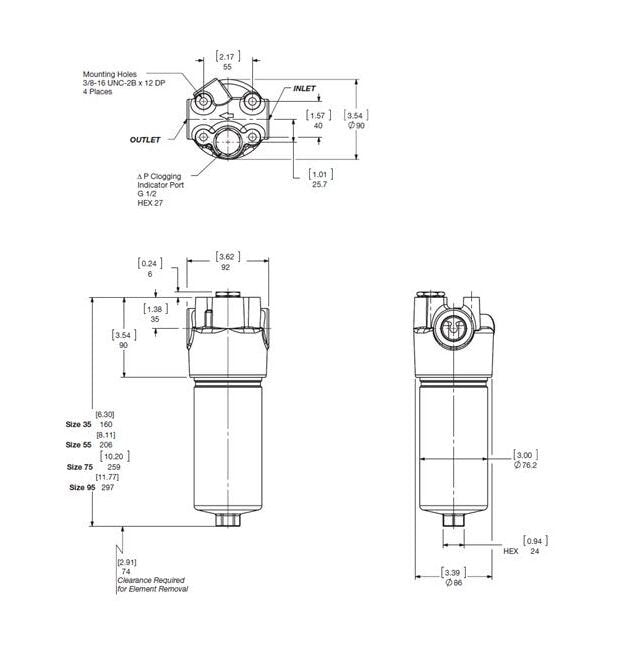

Dimensions Diameter D1
3.39 in | 86 mm
Dimensions Dimension B1
3.62 in | 92 mm
Dimensions Dimension H1
10.2 in | 259 mm
Features 0

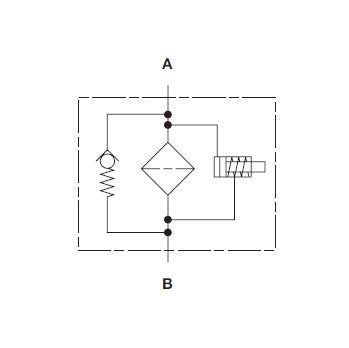

Because of their efficient design and construction, MFM filters are considered a cost effective solution for new equipment, or as a replacement for filters already specified on existing equipment.The MFM filter is available in 4 sizes comprised of four different bowl and element lengths.The models 35, 55, 75, and 95, provide maximum flow rates of 10, 18, 20, and 25GPM respectively.A quick-response bypass valve located in filter head protects against high differential pressures caused by cold startups, flow surges and pressure spikes.The high bypass pressure setting (100 psid) minimizes the possibility of contamination due to premature bypassing.Filter materials are compatible with all mineral, lubricating oils, and commonly used fire retardant fluids per ISO 2943.Fatigue pressure rating equals maximum allowable working pressure rating.
Specifications Bun
High Pressure
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Indication Type
BM = Pop-up indicator (manual reset)
Specifications Industry Standardscertifications
Because of their efficient design and construction, MFM filters are considered a cost effective solution for new equipment, or as a replacement for filters already specified on existing equipment.The MFM filter is available in 4 sizes comp
Specifications Model Code Description
MFM ON 75OI5BM4.0/B7
Specifications Modification Number
Latest Version Always Supplied
Specifications Product
FILTERS-HIGH PRESSURE (>3000PSI)
Specifications Product Group Family
FILTERS-HIGH PRESSURE (ò3000 PSI)
Specifications Size
75
Specifications Type
In-Line High Pressure Filter
Specifications Weight
4.72 kg | 10.4 lb
Technical Specifications Burst Housing Pressure Rating
960 bar | 13920 psi
Technical Specifications Bypass Valve Cracking Pressure
7 bar | 101.5 psid
Technical Specifications Construction Material For Bowl
Steel
Technical Specifications Construction Material For Head
Ductile iron
Technical Specifications Element Collapse Pressure Rating
20 bar | 290 psi
Technical Specifications Fatigue Housing Pressure Rating At 1 Mi
280 bar | 4060 psi
Technical Specifications Filter Rating
5 µm

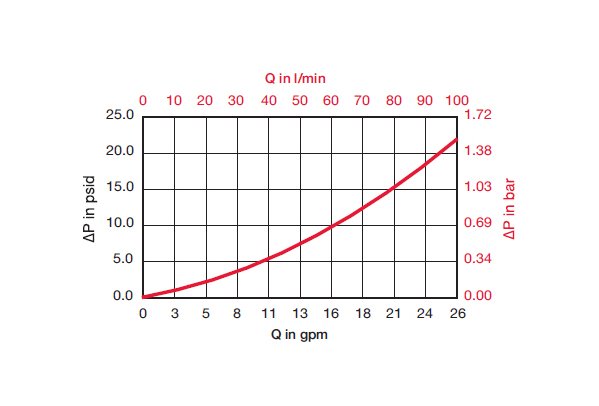

Technical Specifications Flow Capacity
20 gpm | 76 L/min
Technical Specifications Fluid Compatibility
Compatible with all hydrocarbon based, synthetic, water glycol, oil/water emulsion, and high water based fluids when the appropriate seals are selected.
Technical Specifications Maximum Allowable Housing Working Press
280 bar | 4060 psi
Technical Specifications Maximum Fluid Temperature
100 ºC | 212 ºF
Technical Specifications Minimum Fluid Temperature
-10 ºC | 14 ºF
Technical Specifications Mounting Method
Inline Mount 4 Mounting Holes
Technical Specifications Note For Fluid Temperature Range
Consult HYDAC for applications operating below 14ºF (-10ºC)
Technical Specifications Tolerance For Cracking Pressure Optiona
10 %
Technical Specifications Tolerance For Cracking Pressure Standar
10 %
