The High Pressure In-Line Industrial Filter - DF Series (6090 PSI) is designed to meet the demanding filtration requirements of hydraulic systems in industrial and government sectors. With a maximum allowable working pressure rating of 6090 psi and a flow capacity of 200 gpm, this filter ensures optimal performance in high-pressure applications. The non-welded housing design reduces stress concentrations, while the choice of O-ring seals provides reliable sealing with various fluids. The poppet-type bypass valve offers positive sealing during normal operation and fast opening during cold starts. Suitable for diverse industries including automotive, railways, power generation, and more.
Product Specifications
Application 0
AgriculturalAutomotiveConstructionGearboxesIndustrialPulp & PaperOffshoreRailwaysCommercial MunicipalShipbuildingPower GenerationSteel / Heavy Industry

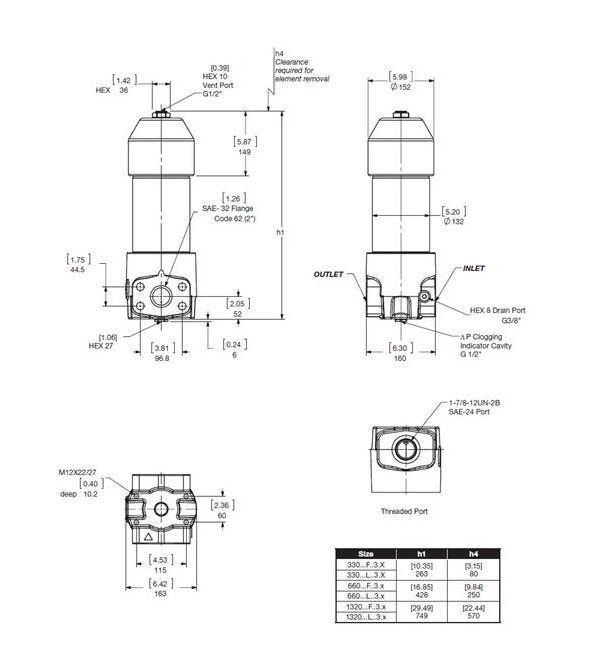

Dimensions Diameter D1
6.42 in | 163 mm
Dimensions Dimension B1
6.30 in | 160 mm
Dimensions Dimension B2
6.30 in | 160 mm
Dimensions Dimension B3
4.53 in | 115 mm
Dimensions Dimension B4
2.36 in | 60 mm
Dimensions Dimension C1
3.81 in | 96.8 mm
Dimensions Dimension C2
1.75 in | 44.5 mm
Dimensions Dimension D2
5.12 in | 130 mm
Dimensions Dimension D3
2 in.
Dimensions Dimension D4
1/2-20UNF- 2B
Dimensions Dimension D5
3/4-10UNC- 2BM20 X 2.5
Dimensions Dimension H1
12.16 in | 309 mm
Dimensions Dimension H2
2.05 in | 52 mm
Dimensions Dimension H4
4.53 in | 115 mm
Dimensions Dimension T1
0.67 in | 17 mm
Dimensions Dimension T2
0.98 in | 25 mm
Features 0
Non-welded housing design reduces stress concentrations and prevents fatigue failure.Choice of NPT, BSPP, SAE straight thread O-ring boss, and SAE 4-bolt flange porting (sizes 60 - 1320) to allow easy installation with maximum flexibility.O-ring seals are used to provide positive, reliable sealing. Choice of O-ring materials (nitrile rubber, fluorocarbon elastomer, and ethylene propylene rubber) provides compatibility with petroleum oils, synthetic fluids, water-glycols, oil/water emulsions, and high water based fluids.Screw-in bowl or lid (on 2-pc. bowls) mounted below the filter head requires minimal clearance to remove the element for replacement and contaminated fluid cannot be washed downstream when element is serviced.HYDAC Differential Pressure Indicators have no external dynamic seal. This results in a high system reliability due to magnetic actuation, thus eliminating a potential leak point.A poppet-type bypass valve located in the filter head provides positive sealing during normal operation and fast opening during cold starts and flow surges. (Optional non-bypass available)For special finishes and coatings - consult HYDAC for minimum quantities, availability and pricing.Fatigue pressure ratings equal maximum allowable working pressure rating.
Specifications Bun
EA
Specifications Cap Material
Steel
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Filter Type
Inline Filter
Specifications Indication Type
B = Pop-up indicator (auto reset)
Specifications Model Code Description
DFW/HC330TL74B1.0/16B6
Specifications Modification Number
0
Specifications Port Configuration
SAE flange Ports
Specifications Port Connection
2 in.
Specifications Product
FILTERS-HIGH PRESSURE (>3000PSI)
Specifications Product Group Family
FILTERS-HIGH PRESSURE (ò3000 PSI)
Specifications Seals
Nitrile Rubber (NBR)
Specifications Size
330
Specifications Type
High Pressure Filter
Specifications Type Number
1
Specifications Weight
54.1 lb
Technical Specifications Burst Housing Pressure Rating
1040 bar | 15080 psi
Technical Specifications Bypass Valve
B6
Technical Specifications Construction Material For Bowl
Steel
Technical Specifications Construction Material For Head
Ductile iron
Technical Specifications Flow Capacity
87 gpm | 330 L/min
Technical Specifications Fluid Compatibility
Compatible with all hydrocarbon based, synthetic, water glycol, oil/water emulsion, and high water based fluids when the appropriate seals are selected.
