High Pressure In-Line Industrial Filter - DF Series (6090 PSI)

High Pressure In-Line Industrial Filter - DF Series (6090 PSI)

HYD-db3593

Efficiently filter hydraulic systems with the High Pressure In-Line Industrial Filter, designed for 6090 psi applications.

$289.99
$289.99
Sale

Initiate Order

High Pressure In-Line Industrial Filter - DF Series (6090 PSI)

High Pressure In-Line Industrial Filter - DF Series (6090 PSI)

$289.99

Quantity: 1

Claim Your Seller Account

High Pressure In-Line Industrial Filter - DF Series (6090 PSI)

High Pressure In-Line Industrial Filter - DF Series (6090 PSI)

$289.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The High Pressure In-Line Industrial Filter - DF Series is a robust filtration solution designed to handle pressures up to 6090 psi, ensuring efficient filtration for hydraulic systems in industrial applications. With a flow capacity of 29 gpm and a durable construction featuring ductile iron and steel materials, this filter offers reliability and longevity. Its non-welded housing design reduces stress concentrations, preventing fatigue failure, and the choice of port configurations allows for easy installation. The inclusion of a poppet-type bypass valve ensures positive sealing during normal operation and fast opening in demanding conditions, enhancing system performance and longevity.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Application 0
AgriculturalAutomotiveConstructionGearboxesIndustrialPulp & PaperOffshoreRailwaysCommercial MunicipalShipbuildingPower GenerationSteel / Heavy Industry

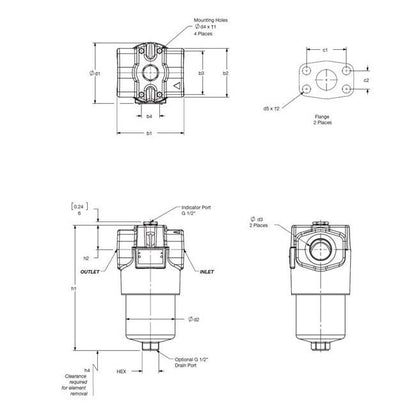

Dimensions Diameter D1
3.39 in | 86 mm
Dimensions Dimension B1
3.54 in | 90 mm
Dimensions Dimension B2
2.8 in | 71 mm
Dimensions Dimension B3
2.2 in | 56 mm
Dimensions Dimension B4
1.26 in | 32 mm
Dimensions Dimension D2
2.68 in | 68 mm
Dimensions Dimension D3
3/4 in.
Dimensions Dimension D4
1/4-28UNF- 2B
Dimensions Dimension H1
9.88 in | 251 mm
Dimensions Dimension H2
1.57 in | 40 mm
Dimensions Dimension H4
3.35 in | 85 mm
Dimensions Dimension T1
0.35 in | 9 mm
Features 0
Non-welded housing design reduces stress concentrations and prevents fatigue failure.Choice of NPT, BSPP, SAE straight thread O-ring boss, and SAE 4-bolt flange porting (sizes 60 - 1320) to allow easy installation with maximum flexibility.O-ring seals are used to provide positive, reliable sealing. Choice of O-ring materials (nitrile rubber, fluorocarbon elastomer, and ethylene propylene rubber) provides compatibility with petroleum oils, synthetic fluids, water-glycols, oil/water emulsions, and high water based fluids.Screw-in bowl or lid (on 2-pc. bowls) mounted below the filter head requires minimal clearance to remove the element for replacement and contaminated fluid cannot be washed downstream when element is serviced.HYDAC Differential Pressure Indicators have no external dynamic seal. This results in a high system reliability due to magnetic actuation, thus eliminating a potential leak point.A poppet-type bypass valve located in the filter head provides positive sealing during normal operation and fast opening during cold starts and flow surges. (Optional non-bypass available)For special finishes and coatings - consult HYDAC for minimum quantities, availability and pricing.Fatigue pressure ratings equal maximum allowable working pressure rating.
Specifications Bun
EA
Specifications Cap Material
Steel
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Filter Type
Inline Filter
Specifications Indication Type
A = No indicator, plugged port
Specifications Model Code Description
DF ON 110TC20A1.0/12B6
Specifications Modification Number
0
Specifications Port Configuration
SAE Straight Thread O-ring Boss Ports
Specifications Port Connection
3/4 in.
Specifications Product
FILTERS-HIGH PRESSURE (>3000PSI)
Specifications Product Group Family
FILTERS-HIGH PRESSURE (ò3000 PSI)
Specifications Seals
Nitrile Rubber (NBR)
Specifications Size
110
Specifications Type
High Pressure Filter
Specifications Type Number
1
Specifications Weight
12 lb
Technical Specifications Burst Housing Pressure Rating
1200 bar | 17400 psi
Technical Specifications Bypass Valve
B6
Technical Specifications Bypass Valve Cracking Pressure
6 bar | 87 psid
Technical Specifications Construction Material For Bowl
Steel
Technical Specifications Construction Material For Head
Ductile iron
Technical Specifications Element Collapse Pressure Rating
20 bar | 290 psi
Technical Specifications Element K Factors
0.164
Technical Specifications Fatigue Housing Pressure Rating At 1 Mi
420 bar | 6090 psi

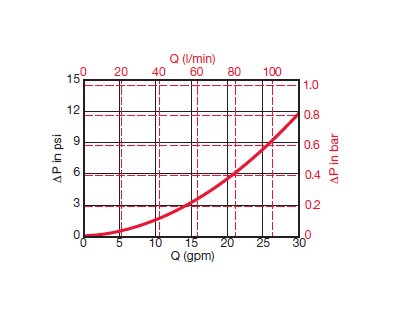

Technical Specifications Flow Capacity
29 gpm | 110 L/min
Technical Specifications Fluid Compatibility
Compatible with all hydrocarbon based, synthetic, water glycol, oil/water emulsion, and high water based fluids when the appropriate seals are selected.
