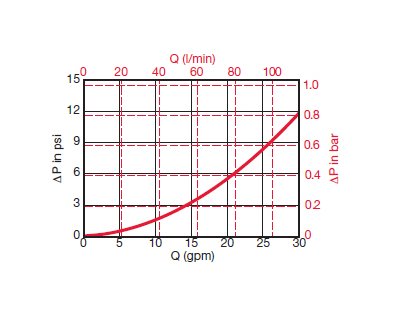

  • High Pressure In-Line Industrial Filter - DF Series (6090 PSI) - Image 4
1 4
HYDAC Technology Corporation →

High Pressure In-Line Industrial Filter - DF Series (6090 PSI)

High Pressure In-Line Industrial Filter - DF Series (6090 PSI)

HYD-14e3a8

Ensure optimal filtration in high-pressure hydraulic systems with our High Pressure In-Line Industrial Filter - DF Series (6090 PSI)

$499.99
$499.99
Sale

Initiate Order

High Pressure In-Line Industrial Filter - DF Series (6090 PSI)

High Pressure In-Line Industrial Filter - DF Series (6090 PSI)

$499.99

Quantity: 1

Claim Your Seller Account

High Pressure In-Line Industrial Filter - DF Series (6090 PSI)

High Pressure In-Line Industrial Filter - DF Series (6090 PSI)

$499.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The High Pressure In-Line Industrial Filter, part of the DF Series, is designed to handle up to 6090 psi and flow rates of up to 200 gpm. With a durable steel construction and various port configurations including SAE Straight Thread O-ring Boss Ports, this filter ensures reliable filtration in high-pressure hydraulic systems. It features a B6 bypass valve for optimal performance during cold starts and flow surges, along with compatibility with various fluids. The non-welded housing design reduces stress concentrations, enhancing longevity and reliability.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Application 0
AgriculturalAutomotiveConstructionGearboxesIndustrialPulp & PaperOffshoreRailwaysCommercial MunicipalShipbuildingPower GenerationSteel / Heavy Industry
Dimensions Diameter D1
3.39 in | 86 mm
Dimensions Dimension B1
3.54 in | 90 mm
Dimensions Dimension B2
2.8 in | 71 mm
Dimensions Dimension B3
2.2 in | 56 mm
Dimensions Dimension B4
1.26 in | 32 mm
Dimensions Dimension D2
2.68 in | 68 mm
Dimensions Dimension D3
3/4 in.
Dimensions Dimension D4
1/4-28UNF- 2B
Dimensions Dimension H1
7.22 in | 183.5 mm
Dimensions Dimension H2
1.57 in | 40 mm
Dimensions Dimension H4
3.35 in | 85 mm
Dimensions Dimension T1
0.35 in | 9 mm
Features 0
Non-welded housing design reduces stress concentrations and prevents fatigue failure.Choice of NPT, BSPP, SAE straight thread O-ring boss, and SAE 4-bolt flange porting (sizes 60 - 1320) to allow easy installation with maximum flexibility.O-ring seals are used to provide positive, reliable sealing. Choice of O-ring materials (nitrile rubber, fluorocarbon elastomer, and ethylene propylene rubber) provides compatibility with petroleum oils, synthetic fluids, water-glycols, oil/water emulsions, and high water based fluids.Screw-in bowl or lid (on 2-pc. bowls) mounted below the filter head requires minimal clearance to remove the element for replacement and contaminated fluid cannot be washed downstream when element is serviced.HYDAC Differential Pressure Indicators have no external dynamic seal. This results in a high system reliability due to magnetic actuation, thus eliminating a potential leak point.A poppet-type bypass valve located in the filter head provides positive sealing during normal operation and fast opening during cold starts and flow surges. (Optional non-bypass available)For special finishes and coatings - consult HYDAC for minimum quantities, availability and pricing.Fatigue pressure ratings equal maximum allowable working pressure rating.
Specifications Bun
EA
Specifications Cap Material
Steel
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Filter Type
Inline Filter
Specifications Indication Type
A = No indicator, plugged port
Specifications Model Code Description
DFW/HC60TC25A1.0/12V-B6
Specifications Modification Number
0
Specifications Port Configuration
SAE Straight Thread O-ring Boss Ports
Specifications Port Connection
3/4 in.
Specifications Product
FILTERS-HIGH PRESSURE (>3000PSI)
Specifications Product Group Family
FILTERS-HIGH PRESSURE (ò3000 PSI)
Specifications Seals
Fluorocarbon Elastomer (FKM)
Specifications Size
60
Specifications Type
High Pressure Filter
Specifications Type Number
1
Specifications Weight
10 lb
Technical Specifications Burst Housing Pressure Rating
1200 bar | 17400 psi
Technical Specifications Bypass Valve
B6
Technical Specifications Bypass Valve Cracking Pressure
6 bar | 87 psid
Technical Specifications Construction Material For Bowl
Steel
Technical Specifications Construction Material For Head
Ductile iron
Technical Specifications Element Collapse Pressure Rating
20 bar | 290 psi
Technical Specifications Element K Factors
0.042
Technical Specifications Fatigue Housing Pressure Rating At 1 Mi
420 bar | 6090 psi
Technical Specifications Flow Capacity
16 gpm | 60 L/min
Technical Specifications Fluid Compatibility
Compatible with all hydrocarbon based, synthetic, water glycol, oil/water emulsion, and high water based fluids when the appropriate seals are selected.
