High Pressure In-Line Industrial Filter - DF Series (6090 PSI)

High Pressure In-Line Industrial Filter - DF Series (6090 PSI)

HYD-4cdab2

Robust High Pressure In-Line Industrial Filter for 6090 psi applications, ensuring optimal fluid cleanliness and reliability.

$699.99
$699.99
Sale

Initiate Order

High Pressure In-Line Industrial Filter - DF Series (6090 PSI)

High Pressure In-Line Industrial Filter - DF Series (6090 PSI)

$699.99

Quantity: 1

Claim Your Seller Account

High Pressure In-Line Industrial Filter - DF Series (6090 PSI)

High Pressure In-Line Industrial Filter - DF Series (6090 PSI)

$699.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The High Pressure In-Line Industrial Filter from the DF Series is a robust solution designed for 6090 psi applications, with a maximum flow capacity of 200 gpm. Constructed with durable ductile iron, this filter ensures optimal fluid cleanliness, featuring a 10 µm filter rating. Its non-welded housing design and choice of port configurations provide installation flexibility, while the poppet-type bypass valve enhances system reliability. Ideal for various industries such as automotive, industrial, and power generation, this filter guarantees high performance and efficiency in critical operations.

Product Specifications

Application 0
AgriculturalAutomotiveConstructionGearboxesIndustrialPulp & PaperOffshoreRailwaysCommercial MunicipalShipbuildingPower GenerationSteel / Heavy Industry

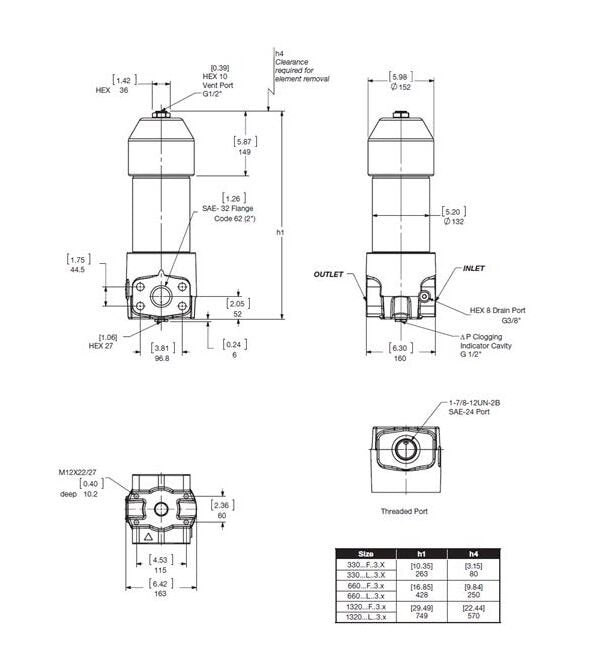

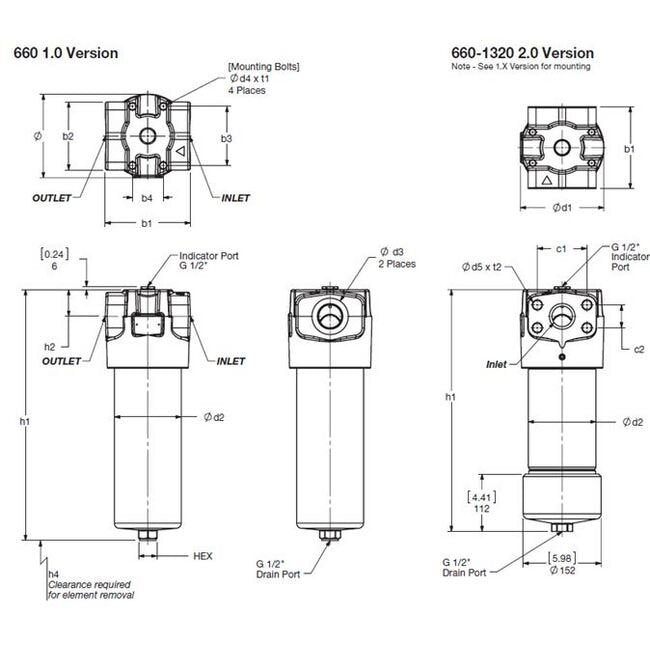

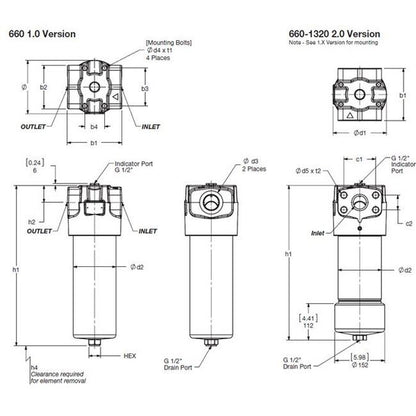

Dimensions Diameter D1
6.3 in | 160 mm
Dimensions Dimension B2
5.24 in | 133 mm
Dimensions Dimension B3
4.53 in | 115 mm
Dimensions Dimension B4
2.36 in | 60 mm
Dimensions Dimension D2
6.42 in | 163 mm
Dimensions Dimension D3
1- 1/2 in.
Dimensions Dimension D4
1/2-20UNF- 2B M12x1.75
Dimensions Dimension H1
18.93 in | 481 mm
Dimensions Dimension H2
2.05 in | 52 mm
Dimensions Dimension H4
4.53 in | 115 mm
Dimensions Dimension T1
0.67 in | 17 mm
Features 0
Non-welded housing design reduces stress concentrations and prevents fatigue failure.Choice of NPT, BSPP, SAE straight thread O-ring boss, and SAE 4-bolt flange porting (sizes 60 - 1320) to allow easy installation with maximum flexibility.O-ring seals are used to provide positive, reliable sealing. Choice of O-ring materials (nitrile rubber, fluorocarbon elastomer, and ethylene propylene rubber) provides compatibility with petroleum oils, synthetic fluids, water-glycols, oil/water emulsions, and high water based fluids.Screw-in bowl or lid (on 2-pc. bowls) mounted below the filter head requires minimal clearance to remove the element for replacement and contaminated fluid cannot be washed downstream when element is serviced.HYDAC Differential Pressure Indicators have no external dynamic seal. This results in a high system reliability due to magnetic actuation, thus eliminating a potential leak point.A poppet-type bypass valve located in the filter head provides positive sealing during normal operation and fast opening during cold starts and flow surges. (Optional non-bypass available)For special finishes and coatings - consult HYDAC for minimum quantities, availability and pricing.Fatigue pressure ratings equal maximum allowable working pressure rating.
Specifications Bun
EA
Specifications Cap Material
Steel
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Filter Type
Inline Filter
Specifications Indication Type
C = 2 terminal electric switch
Specifications Model Code Description
DF ON 660TF10C1.0/12B4
Specifications Modification Number
0
Specifications Port Configuration
SAE-12 Straight Thread O-Ring Boss Ports
Specifications Port Connection
1 1/2 in. Threaded
Specifications Product
FILTERS-HIGH PRESSURE (>3000PSI)
Specifications Product Group Family
FILTERS-HIGH PRESSURE (ò3000 PSI)
Specifications Seals
Nitrile Rubber (NBR)
Specifications Size
660
Specifications Type
High Pressure Filter
Specifications Type Number
1
Specifications Weight
70 lb
Technical Specifications Burst Housing Pressure Rating
1040 bar | 15080 psi
Technical Specifications Construction Material For Head
Ductile iron
Technical Specifications Element Collapse Pressure Rating
20 bar | 290 psi
Technical Specifications Element K Factors
0.051
Technical Specifications Fatigue Housing Pressure Rating At 1 Mi
420 bar | 6090 psi
Technical Specifications Filter Rating
10 µm

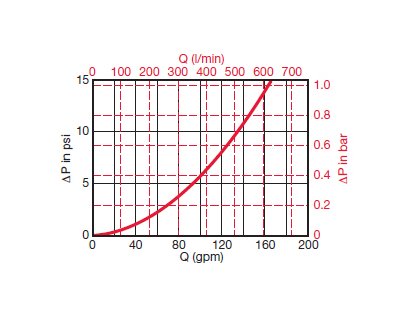

Technical Specifications Flow Capacity
174 gpm | 660 L/min
Technical Specifications Flow Direction
Inside - Outside
Technical Specifications Fluid Compatibility
Compatible with all hydrocarbon based, synthetic, water glycol, oil/water emulsion, and high water based fluids when the appropriate seals are selected.
Technical Specifications Maximum Allowable Housing Working Press
420 bar | 6090 psi
Technical Specifications Maximum Fluid Temperature
100 ºC | 212 ºF
