High Pressure In-Line Industrial Filter DF Series - 6090 PSI

High Pressure In-Line Industrial Filter DF Series - 6090 PSI

HYD-af644b

Enhance system reliability with our High Pressure In-Line Industrial Filter DF Series - 6090 PSI. Ensure optimal performance under extreme pressure conditions!

$499.99
$499.99
Sale

Initiate Order

High Pressure In-Line Industrial Filter DF Series - 6090 PSI

High Pressure In-Line Industrial Filter DF Series - 6090 PSI

$499.99

Quantity: 1

Claim Your Seller Account

High Pressure In-Line Industrial Filter DF Series - 6090 PSI

High Pressure In-Line Industrial Filter DF Series - 6090 PSI

$499.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The High Pressure In-Line Industrial Filter DF Series is designed for applications requiring impeccable filtration performance under extreme pressure conditions of up to 6090 psi. With a flow capacity of 174 gpm and a compact design, this filter ensures efficient oil cleanliness maintenance for hydraulic systems in various industries. Featuring a durable steel cap, non-welded housing design, and a poppet-type bypass valve, this filter guarantees superior reliability and performance. Compatible with a wide range of fluids, this filter is a versatile and essential component for agricultural, automotive, industrial, and other heavy-duty applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Application 0
AgriculturalAutomotiveConstructionGearboxesIndustrialPulp & PaperOffshoreRailwaysCommercial MunicipalShipbuildingPower GenerationSteel / Heavy Industry

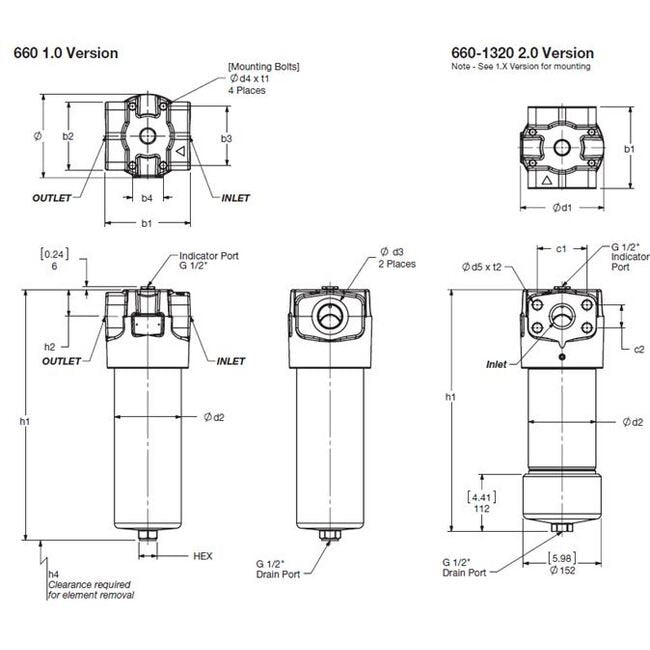

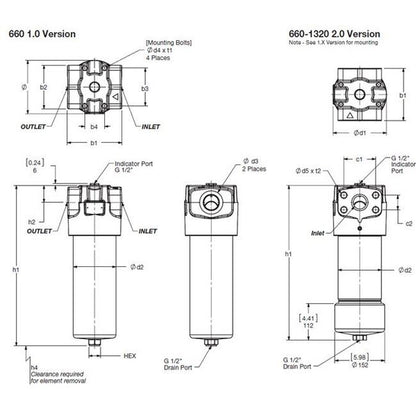

Dimensions Diameter D1
6.3 in | 160 mm
Dimensions Dimension B2
5.24 in | 133 mm
Dimensions Dimension B3
4.53 in | 115 mm
Dimensions Dimension B4
2.36 in | 60 mm
Dimensions Dimension C1
96.8 in | 1.75 mm
Dimensions Dimension C2
44.5 in
Dimensions Dimension D2
6.42 in | 163 mm
Dimensions Dimension D3
2 in.
Dimensions Dimension D4
1/2-20UNF- 2B M12x1.75
Dimensions Dimension D5
3/4-10UNC- 2BM20 X 2.5
Dimensions Dimension H1
18.54 in | 471 mm
Dimensions Dimension H2
2.05 in | 52 mm
Dimensions Dimension H4
4.53 in | 115 mm
Dimensions Dimension T1
0.67 in | 17 mm
Dimensions Dimension T2
0.98 in | 25 mm
Features 0
Non-welded housing design reduces stress concentrations and prevents fatigue failure.Choice of NPT, BSPP, SAE straight thread O-ring boss, and SAE 4-bolt flange porting (sizes 60 - 1320) to allow easy installation with maximum flexibility.O-ring seals are used to provide positive, reliable sealing. Choice of O-ring materials (nitrile rubber, fluorocarbon elastomer, and ethylene propylene rubber) provides compatibility with petroleum oils, synthetic fluids, water-glycols, oil/water emulsions, and high water based fluids.Screw-in bowl or lid (on 2-pc. bowls) mounted below the filter head requires minimal clearance to remove the element for replacement and contaminated fluid cannot be washed downstream when element is serviced.HYDAC Differential Pressure Indicators have no external dynamic seal. This results in a high system reliability due to magnetic actuation, thus eliminating a potential leak point.A poppet-type bypass valve located in the filter head provides positive sealing during normal operation and fast opening during cold starts and flow surges. (Optional non-bypass available)For special finishes and coatings - consult HYDAC for minimum quantities, availability and pricing.Fatigue pressure ratings equal maximum allowable working pressure rating.
Specifications Bun
EA
Specifications Cap Material
Steel
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Filter Type
Inline Filter
Specifications Indication Type
D = Electric switch and LED light - SPDT
Specifications Model Code Description
DF ON 660TL3D2.0/16B6-L24
Specifications Modification Number
0
Specifications Port Configuration
SAE-12 Straight Thread O-Ring Boss Ports
Specifications Port Connection
2 in. SAE Code 62 Flange
Specifications Product
FILTERS-HIGH PRESSURE (>3000PSI)
Specifications Product Group Family
FILTERS-HIGH PRESSURE (ò3000 PSI)
Specifications Seals
Nitrile Rubber (NBR)
Specifications Size
660
Specifications Type
High Pressure Filter
Specifications Type Number
1
Specifications Weight
75.9 lb
Supplementary Details 0
Lamp for D-type clogging indicator (LXX, XX = voltage)
Technical Specifications Burst Housing Pressure Rating
1040 bar | 15080 psi
Technical Specifications Bypass Valve
B6
Technical Specifications Bypass Valve Cracking Pressure
6 bar | 87 psid
Technical Specifications Construction Material For Head
Ductile iron
Technical Specifications Flow Capacity
174 gpm | 660 L/min
Technical Specifications Fluid Compatibility
Compatible with all hydrocarbon based, synthetic, water glycol, oil/water emulsion, and high water based fluids when the appropriate seals are selected.
