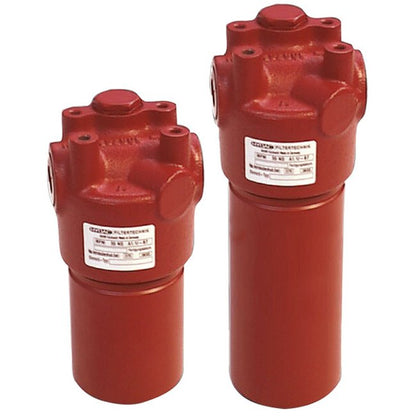

High-Pressure In-Line Mobile Filter - MFM Series (4060 PSI)
High-Pressure In-Line Mobile Filter - MFM Series (4060 PSI)
SKU:HYD-3d69c1
High-pressure hydraulic filter for systems up to 4060 PSI, with 10 µm filter rating and durable construction for reliable performance.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
High-Pressure In-Line Mobile Filter - MFM Series (4060 PSI)
$289.99
Quantity: 1
Claim Your Seller Account
High-Pressure In-Line Mobile Filter - MFM Series (4060 PSI)
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High-Pressure In-Line Mobile Filter from MFM Series is designed to meet the stringent filtration requirements of hydraulic systems operating at pressures up to 4060 PSI. With a flow capacity of 20 gpm and a filter rating of 10 µm, this filter ensures optimal performance and protection. Constructed with durable materials including cast aluminum head and aluminum extrusion bowl, it offers reliability in demanding environments. The non-welded housing design reduces stress concentrations, extends service life, and enhances overall system efficiency. Compatible with various fluids, this filter is suitable for agricultural, automotive, industrial, and commercial applications.
Product Specifications
Application 0
AgriculturalAutomotiveConstructionGearboxesIndustrialCommercial Municipal

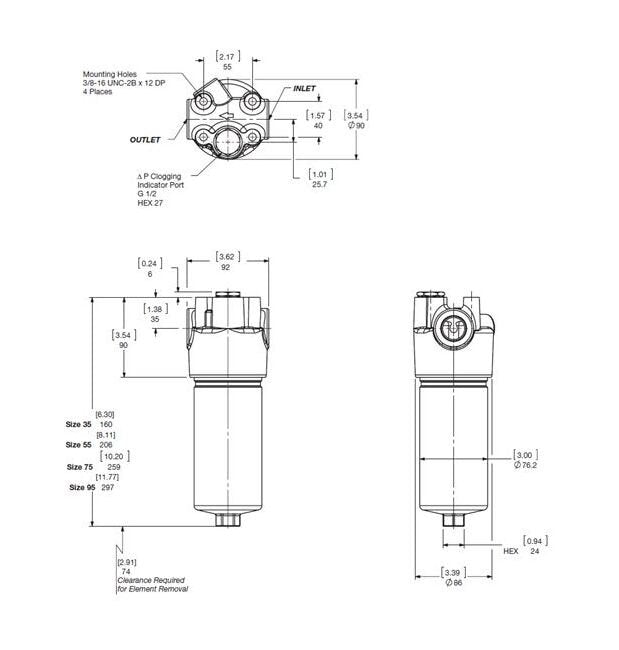

Dimensions Diameter D1
3.39 in | 86 mm
Dimensions Dimension B1
3.62 in | 92 mm
Dimensions Dimension H1
10.2 in | 259 mm
Features 0
Non-welded housing design reduces stress concentrations and prevents fatigue failure.Aluminum alloy is water tolerant - anodization is not required for water based fluids (HWBF).Inlet & outlet port options include NPT, BSPP and SAE
Specifications Bun
Medium Pressure
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Indication Type
D = Electric switch and LED light - SPDT
Specifications Model Code Description
MFM ON 75OI10D4.0/B7-L24
Specifications Modification Number
Latest Version Always Supplied
Specifications Product
FILTERS-HIGH PRESSURE (>3000PSI)
Specifications Product Group Family
FILTERS-HIGH PRESSURE (ò3000 PSI)
Specifications Size
75
Specifications Type
In-Line High Pressure Filter
Specifications Weight
4.72 kg | 10.4 lb
Supplementary Details 0
Lamp for D-type clogging indicator (LXX, XX = voltage)
Technical Specifications Burst Housing Pressure Rating
960 bar | 13920 psi
Technical Specifications Bypass Valve Cracking Pressure
7 bar | 100 psid
Technical Specifications Construction Material For Bowl
Aluminum Extrusion
Technical Specifications Construction Material For Head
Cast Aluminum
Technical Specifications Element Collapse Pressure Rating
20 bar | 290 psi
Technical Specifications Fatigue Housing Pressure Rating At 1 Mi
280 bar | 4060 psi
Technical Specifications Filter Rating
10 µm

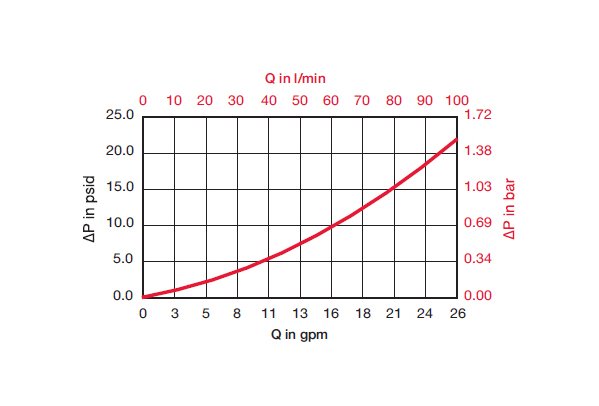

Technical Specifications Flow Capacity
20 gpm | 76 L/min
Technical Specifications Fluid Compatibility
Compatible with all hydrocarbon based, synthetic, water glycol, oil/water emulsion, and high water based fluids when the appropriate seals are selected.
Technical Specifications Maximum Allowable Housing Working Press
100 bar | 1500 psi
Technical Specifications Maximum Fluid Temperature
100 ºC | 212 ºF
Technical Specifications Minimum Fluid Temperature
-10 ºC | 14 ºF
Technical Specifications Mounting Method
4 Mounting Holes - Filter Head
Technical Specifications Note For Fluid Temperature Range
Consult HYDAC for applications operating below 14ºF (-10ºC)
Technical Specifications Tolerance For Cracking Pressure Optiona
10 %
Technical Specifications Tolerance For Cracking Pressure Standar
10 %
