High-pressure low-pressure cross fittings designed for precision tubing connections with 15000 psi pressure rating. Optimal fit and durability for industrial applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
High Pressure Low Pressure Cross Fittings for Precision Tubing Connections
$39.99
Quantity: 1
Claim Your Seller Account
High Pressure Low Pressure Cross Fittings for Precision Tubing Connections
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unmatched durability and precision with our high-pressure low-pressure cross fittings. Designed with W125 connection type, these fittings boast a robust construction that can withstand pressures up to 15000 psi. The 1/8-inch outside diameter tubing ensures a secure fit, while the innovative design eliminates the need for compression sleeves when using a plug. With dimensions crafted for maximum efficiency, these fittings meet the highest industry standards and are compatible with Autoclave Engineers tubing for optimal performance.
Product Specifications
Features Features

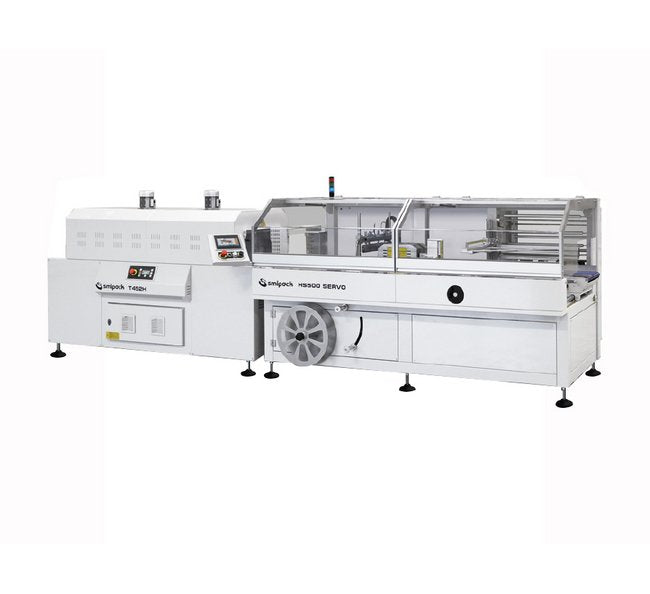

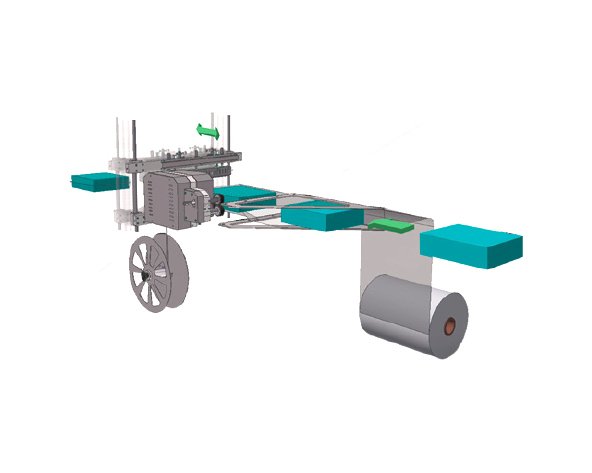

Box motion working cycleCross sealing bar controlled by servomotor with PTFE-coated sealing bladeSide sealing system by friction with hot bladeMotorized center seal systemFLXMOD® control system equipped with:7 inch full-Color touch screen display with PLC user-friendlyPower and control section consisting of:Drivers and inverters for all motorsCommand modules with 16 digital inputs/outputsAnalog inputs control modulesThermocouple-reading control modulesPossibility of scheduling up to 50 different work cyclesPossibility of remote controlReduced power consumptionVacuum belt (optional)
Film Reel Dimensions Maximum Film Reel Diameter
13.78 in
Film Reel Dimensions Maximum Film Reel Size
37.40 in

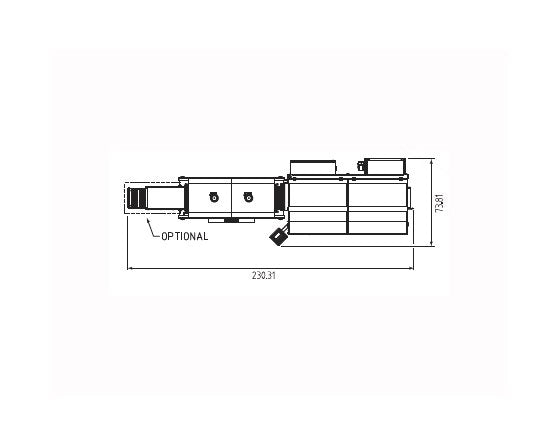

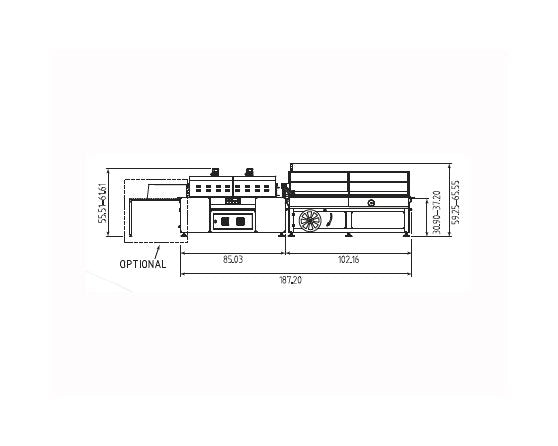

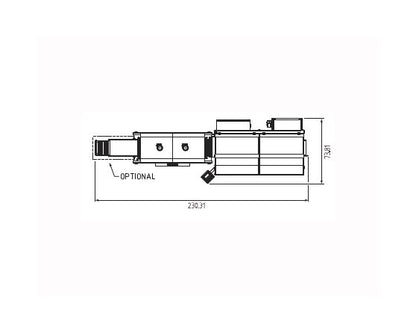

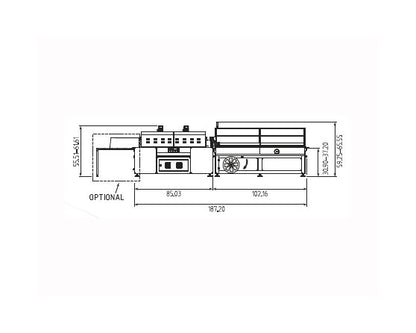

Machine Dimensions Machine Height
59.26 to 73.81 in
Machine Dimensions Machine Length
107.08 in
Machine Dimensions Machine Width
73.81 in
Power Supply Electrical Terminals For 220240 Volt V Power Supply
3PH+PE
Power Supply Electrical Terminals For 380415 Volt V Power Supply
3PH+N+PE
Power Supply Power Supply Frequency
50/60 Hz
Power Supply Power Supply Voltage
220/240 V | 380/415 V
Production Capacity Output Note For Production Capacity Output
The stated speed can change according to the product size, the pack collation and the type of film used.
Production Capacity Output Production Capacity Output
0 to 7200 packs/hour
Specifications Continuous Packer Control
Automatic
Specifications Cross Sealing Bar Length
20.48 in
Specifications Film Material
Polyethylene | Polyolefin | Polypropylene
Specifications Industry Standardscertifications
European Conformity (CE) Regulations
Specifications Installed Power
8500 W
Specifications Machine Net Weight
1830 lb
Specifications Maximum Pack Height
7.87 in
Specifications Number Of Belts
3
Specifications Number Of Servomotors
5
Specifications Polyethylene Film Thickness
60 to 320 gauge
Specifications Polyolefin Film Thickness
35 to 120 gauge
Specifications Polypropylene Film Thickness
80 to 160 gauge
Specifications Product Gap Control
Automatic
Specifications Sealing Blade Coating Material
PTFE
Specifications Speed Of Conveyors
16.40 to 131.23 ft/min
