High Pressure Low-Pressure to NPT Male/Male Adapters
High Pressure Low-Pressure to NPT Male/Male Adapters
SKU:VOO-68e73f
Enhance connections with premium High Pressure NPT Adapters. Durable stainless steel construction & optimal sealing for industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Pressure Low-Pressure to NPT Male/Male Adapters
$29.99
Quantity: 1
Claim Your Seller Account
High Pressure Low-Pressure to NPT Male/Male Adapters
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior connections with our High Pressure Low-Pressure to NPT Male/Male Adapters. Autoclave Engineer's standard adapters come in various pressure configurations, machined from top-quality stainless steel. Easily seal NPT threads using PTFE tape & paste for optimal performance. Ensure longevity by limiting assembly/disassembly cycles. Ideal for industrial applications requiring precision and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

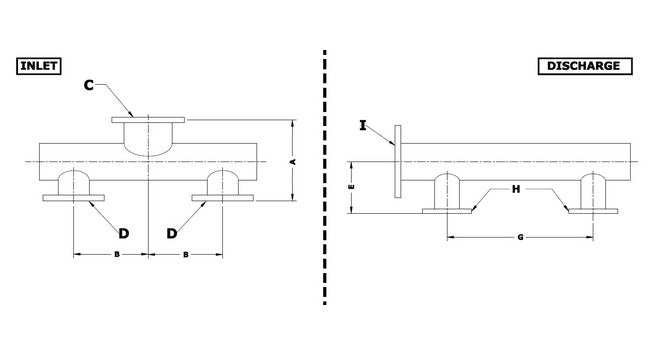

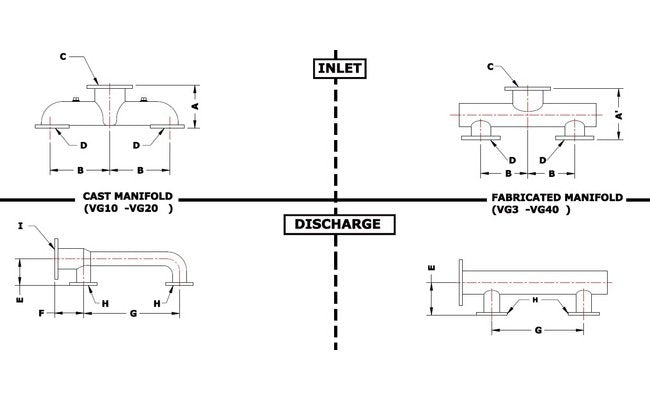

Dimension Discharge Flange Size H
2 x 6 in
Dimension Discharge Flange Size I
3 x 7-1/2 in | 80 x 200 mm
Dimension Discharge Size E
4-1/2 in | 114 mm
Dimension Discharge Size F
5-1/2 in | 140 mm
Dimension Discharge Size G
17 in
Dimension Inlet Flange Size C
4 x 9 in | 100 x 220 mm
Dimension Inlet Flange Size D
3 x 7-1/2 in
Dimension Inlet Size A
9 in
Dimension Inlet Size B
8-1/2 in | 216 mm
Dimension Note For Dimension
Bolt Holes Straddle Center LineProcess Connection Flanges Flat Faced with DIN Bolt PatternAll Flanges Flat Faced with ANSI Bolt PatternCast Manifolds are Constructed Out of CIFabricated Manifolds are Constructed of CS, 304SS or 316SS
Material Construction Features Bearing Carrier Material
Carbon Steel
Material Construction Features Certifications
German Institute for Standardization (DIN)
Material Construction Features Cone Material
Cast Iron
Material Construction Features Head Material
Cast Iron
Material Construction Features Housing Material
Cast Iron
Material Construction Features Package Gland Studs And Nuts Mate
316 Cast Stainless Steel (SS)
Material Construction Features Rotor Material
Ductile Iron
Material Construction Features Shaft Material
Carbon Steel
Specifications Approximate Pump Weight
425 lb | 195 kg
Specifications Bearing Design
Double row spherical roller bearing, external, grease lubricated, Type: NSK 21308EAE4
Specifications Cone Opening Vacuum Level
Low (L)
Specifications Manifold Inlet Flange Connection Size
4 in | 100 mm
Specifications Manifold Outlet Flange Connection Size
3 in | 80 mm
Specifications Nominal Sealing Liquid Flow Rate At 15 Inch In Me
23 L/min | 6 g/min
Specifications Pump Inlet Flange Connection Size
3 in | 80 mm
Specifications Pump Outlet Flange Connection Size
2 in | 50 mm
Specifications Sealing Liquid Connection Size
1 in
Specifications Sealing Liquid Connection Type
National Pipe Thread (NPT)
Specifications Shaft Diameter Drive End
1-1/2 in | 38.1 mm
Specifications Shaft Sealing
Packing
Specifications Type
Single stage rotor, cone shape ports, liquid ring vacuum pump
Test Data Conditions Absolute Barometric Pressure
760 mmHg | 29.92 inHg
Test Data Conditions Inlet Gas Temperature
15.6 ºC | 60 ºF
Test Data Conditions Relative Humidity
50 %
Test Data Conditions Sealing Liquid Temperature
15.6 ºC | 60 ºF
