High-Pressure Male-to-Male Adapters
High-Pressure Male-to-Male Adapters
SKU:VOO-e071e8
Enhance your fluid systems with durable high-pressure male-to-male adapters. Designed for precision and reliability under extreme conditions.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
High-Pressure Male-to-Male Adapters
$45.99
Quantity: 1
Claim Your Seller Account
High-Pressure Male-to-Male Adapters
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial fluid systems with our high-pressure male-to-male adapters. Designed by Autoclave Engineers, these adapters are expertly machined from cold worked stainless steel to ensure durability and reliability under extreme pressure conditions. Available in low, medium, and high-pressure variants, these adapters feature precise dimensions to guarantee seamless connection and optimal performance. Contact us for custom material options. Stocked for prompt delivery.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

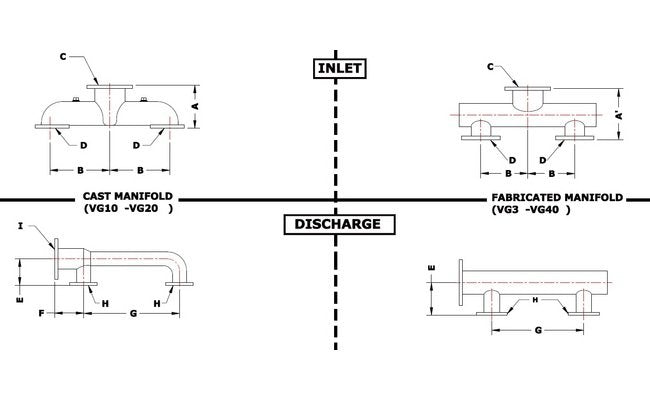

Dimension Discharge Flange Size H
6 x 11 in
Dimension Discharge Flange Size I
8 x 13-1/2 in | 200 x 340 mm
Dimension Discharge Size E
9 in | 229 mm
Dimension Discharge Size F
9 in | 229 mm
Dimension Discharge Size G
41-1/2 in
Dimension Inlet Flange Size C
10 x 16 in | 250 x 395 mm
Dimension Inlet Flange Size D
8 x 13-1/2 in
Dimension Inlet Size A
24 in
Dimension Inlet Size B
20-1/4 in | 514 mm
Dimension Note For Dimension
Bolt Holes Straddle Center LineProcess Connection Flanges Flat Faced with DIN Bolt PatternAll Flanges Flat Faced with ANSI Bolt PatternCast Manifolds are Constructed Out of CIFabricated Manifolds are Constructed of CS, 304SS or 316SS
Material Construction Features Bearing Carrier Material
Carbon Steel
Material Construction Features Cone Material
Cast Iron
Material Construction Features Head Material
Cast Iron
Material Construction Features Housing Material
Cast Iron
Material Construction Features Package Gland Studs And Nuts Mate
316 Cast Stainless Steel (SS)
Material Construction Features Rotor Material
Ductile Iron
Material Construction Features Shaft Material
Carbon Steel
Specifications Approximate Pump Weight
5,755 lb | 2,610 kg
Specifications Bearing Design
Timken tapered roller bearing, grease lubricated. Type: Timken Assembly 90020, 67388 Cone, 67322D Cup, X1S-67388 Spacer
Specifications Certifications
German Institute for Standardization (DIN)
Specifications Cone Opening Vacuum Level
Low (L)
Specifications Manifold Inlet Flange Connection Size
10 in | 250 mm
Specifications Manifold Outlet Flange Connection Size
8 in | 200 mm
Specifications Nominal Sealing Liquid Flow Rate At 15 Inch In Me
75 to 115 L/min | 20 to 30 g/min
Specifications Pump Inlet Flange Connection Size
8 in | 200 mm
Specifications Pump Outlet Flange Connection Size
6 in | 150 mm
Specifications Sealing Liquid Connection Size
1 in
Specifications Sealing Liquid Connection Type
National Pipe Thread (NPT)
Specifications Shaft Diameter Drive End
4 in | 101.6 mm
Specifications Shaft Sealing
Packing
Specifications Type
Single stage rotor, cone shape ports, liquid ring vacuum pump
Test Data Conditions Absolute Barometric Pressure
760 mmHg | 29.92 inHg
Test Data Conditions Inlet Gas Temperature
15.6 ºC | 60 ºF
Test Data Conditions Relative Humidity
50 %
Test Data Conditions Sealing Liquid Temperature
15.6 ºC | 60 ºF
