High Pressure O-Ring Check Valves - Stainless Steel, Viton Seal
High Pressure O-Ring Check Valves - Stainless Steel, Viton Seal
SKU:EXT-148709
Reliable High Pressure O-Ring Check Valves with 60000 psi rating & Viton seal for precise flow control in extreme environments.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High Pressure O-Ring Check Valves - Stainless Steel, Viton Seal
$129.99
Quantity: 1
Claim Your Seller Account
High Pressure O-Ring Check Valves - Stainless Steel, Viton Seal
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Pressure O-Ring Check Valves are designed to provide reliable unidirectional flow control and tight shut-off for liquids and gases. Made from high-quality 316 Stainless Steel with Viton O-ring seals, these valves ensure exceptional performance in high-pressure environments. With a pressure rating of 60000 psi and precise orifice dimensions, these valves offer superior durability and process control. Suitable for temperatures up to 500°F, these valves are ideal for demanding industrial applications requiring precise fluid control. Additional low-temperature options are available for extreme environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

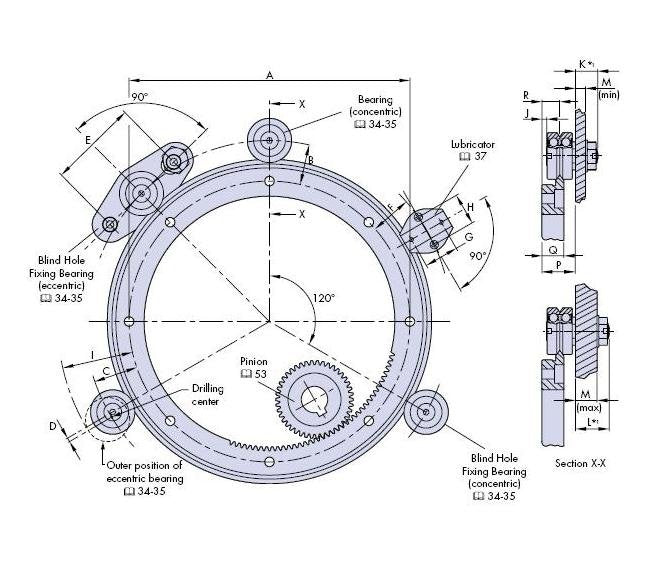

Drilling Positions Dimension B
32.4 mm
Drilling Positions Dimension C
35 mm
Drilling Positions Dimension D
2.5 mm
Drilling Positions Dimension E
60 mm
Drilling Positions Dimension F
31 mm
Drilling Positions Dimension G
22 mm
Drilling Positions Dimension H
25 mm
Manufacturing Notes 0
For Dimension K and L : Short or long stud lengths are available for each size of bearing. Choose according to the required mounting plate thickness.For Drilling Position : Exact theoretical values have been given for `B`, `C` and `D`. Positional accuracy of dimension `B` will determine the axis of the ring. Positional accuracy for dimensions `C` and `D` are not normally critical. Holes for bearing studs should be reamed to tolerance F6 for a sliding fit.
Specifications Dimension A
618.5 mm
Specifications Dimension I
55.6 mm
Specifications Dimension J
2.7 mm
Specifications Dimension K
13.8 mm
Specifications Dimension L
22 mm
Specifications Dimension M Max
14.8 mm
Specifications Dimension M Min
5.2 mm
Specifications Dimension P
24 mm
Specifications Dimension Q
15.5 mm
Specifications Dimension R
12.5 mm
Specifications For Use With Bearing
J34
