High-Pressure Sour Service Bulkhead Couplings
High-Pressure Sour Service Bulkhead Couplings
SKU:HEP-5e69fd
High-Pressure Sour Service Bulkhead Couplings for H2S environments, 30000 psi. Precise connections for secure installations.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
High-Pressure Sour Service Bulkhead Couplings
$69.99
Quantity: 1
Claim Your Seller Account
High-Pressure Sour Service Bulkhead Couplings
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled durability and reliability with our High-Pressure Sour Service Bulkhead Couplings. Designed by Autoclave Engineers specifically for environments with H2S presence, these fittings feature a robust construction with a Pressure Rating of 30000 psi. With precise coned-and-threaded connections, these fittings ensure a secure and leak-free installation. The fittings are compatible with series 30VM-SOGWO and 60VM-SOGWO valves for sour service applications and series 30VM and 60VM valves for standard service. Trust Autoclave for top-quality products that meet stringent industry standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information

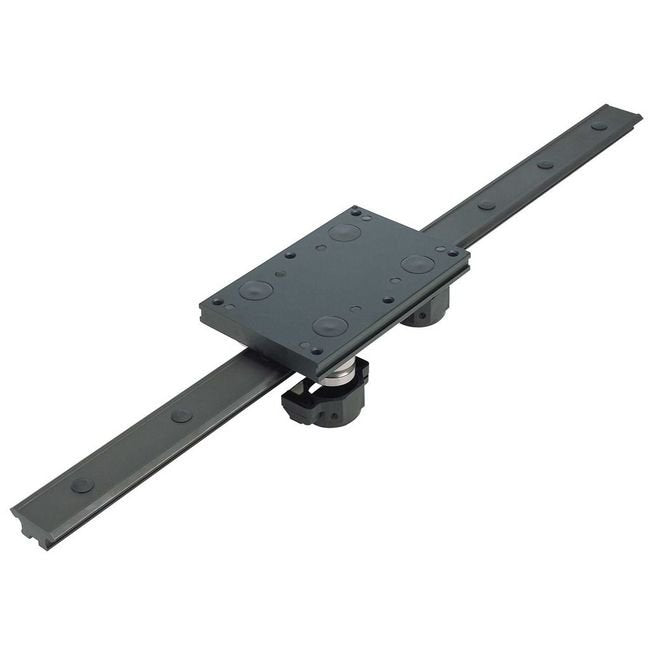

Simple Select utilizes proven Hepco vee slide technology and is ideal for high speed and short stroke movements. The guide track can be fitted to unmachined surfaces if required and is great for attaching to extruded aluminum profiles. The design enables short installation time because the linear bearing carriage is assembled and adjusted to the linear track. Simply mount the track with fasteners, and attach your load to the carriage. The carriage features double row ball bearing guide wheels for long and trouble free life. The wheels are covered and protected by cap seal wipers which prevent dirt ingress and ensure constant positive lubrication.The vee slides are made from AISI 52100 high carbon bearing grade steel with the vee faces are hardened for wear resistance to 58-62 Rockwell C scale. They are finished in chemical black and provided with mounting hole blanking plugs.The wheel plate carriages are made from high strength aluminum alloy and are finished in black anodize. They feature pre-mounted and adjusted linear guide bearings with cap seals. The cap seal wheel covers are made from impact resistant thermoplastic elastomer and hold lubricating felt wipers to push debris aside and to apply a light film of lubricating oil. The wheel plate carriage is high speed capable and has a maximum linear speed of 8 m/s when used with a lubricated vee slide. This configuration includes two size 20 wheel plate carriages pre-assembled and adjusted to 1976 mm of size 20 double edge slide track.Most applications involve central L1 loads. In these cases simply divide your load (N) by the carriage L1 capacity figure to determine a load factor. Then simply read off the line from the graph. For offset loads you will need to add the relevant load factors to determine the total. Load Factor should not exceed 1.
Features Features
Complete linear guide assembly with guide track Solid steel spacer slide with 70-degree vees, hardened Carriage assembly with 6 threaded mounting holes Chemical black finish, and black anodize Supplied with blanking plugs to seal all holes
Specifications Carriage
2
Specifications Carriage Capacity M
12
Specifications Carriage Capacity Ms
4
Specifications Carriage Capacity Mv
19
Specifications Load Carried L1
435 N
Specifications Load Carried L2
685 N
Specifications Model
202-1976
Specifications Size
20
Specifications Track Length
1976 mm
