High Pressure Stainless Steel Ball Check Valve F250C
High Pressure Stainless Steel Ball Check Valve F250C
SKU:EXT-3fdda8
High Pressure Stainless Steel Ball Check Valve F250C for reliable reverse flow prevention at 60000 psi | 4136.79 bar.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
High Pressure Stainless Steel Ball Check Valve F250C
$189.99
Quantity: 1
Claim Your Seller Account
High Pressure Stainless Steel Ball Check Valve F250C
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Ideal for preventing reverse flow without mandatory leak-tight shut-off, the High Pressure Stainless Steel Ball Check Valve F250C is designed to close when the differential drops below cracking pressure. With all-metal construction and capable of withstanding temperatures up to 1200°F (649°C), this valve features an integral ball and poppet design for reliable in-line seating without 'chatter'. The 316 Stainless Steel body and components ensure durability and reliability even in demanding environments. Operating at a pressure rating of 60000 psi | 4136.79 bar, this valve is a versatile and robust choice for high-pressure applications.
Product Specifications

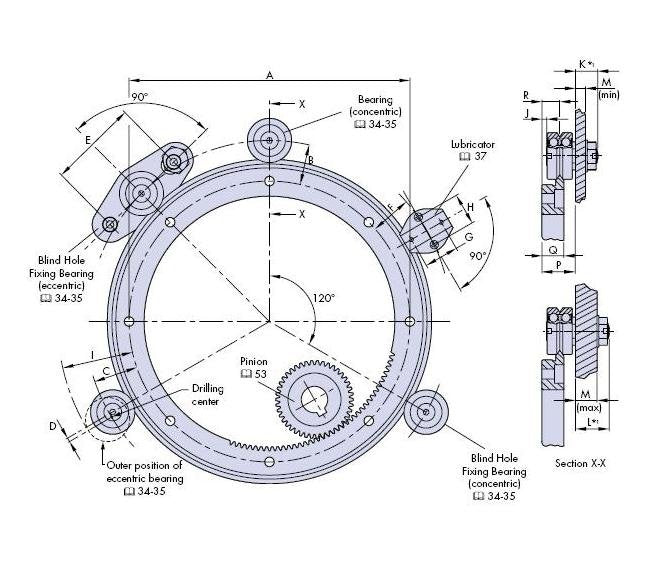

Drilling Positions Dimension B
32.4 mm
Drilling Positions Dimension C
35 mm
Drilling Positions Dimension D
2.5 mm
Drilling Positions Dimension E
60 mm
Drilling Positions Dimension F
31 mm
Drilling Positions Dimension G
22 mm
Drilling Positions Dimension H
25 mm
Manufacturing Notes 0
For Dimension K and L : Short or long stud lengths are available for each size of bearing. Choose according to the required mounting plate thickness.For Drilling Position : Exact theoretical values have been given for `B`, `C` and `D`. Positional accuracy of dimension `B` will determine the axis of the ring. Positional accuracy for dimensions `C` and `D` are not normally critical. Holes for bearing studs should be reamed to tolerance F6 for a sliding fit.
Specifications Dimension A
468.5 mm
Specifications Dimension I
55.6 mm
Specifications Dimension J
2.7 mm
Specifications Dimension K
13.8 mm
Specifications Dimension L
22 mm
Specifications Dimension M Max
14.8 mm
Specifications Dimension M Min
5.2 mm
Specifications Dimension P
24 mm
Specifications Dimension Q
15.5 mm
Specifications Dimension R
12.5 mm
Specifications For Use With Bearing
J34
