High Pressure Stainless Steel Nipples - F250C
High Pressure Stainless Steel Nipples - F250C
SKU:ASS-1b366c
Rapid system make-up with High Pressure Stainless Steel Nipples designed for durability and high performance in various sizes and lengths.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Pressure Stainless Steel Nipples - F250C
$29.99
Quantity: 1
Claim Your Seller Account
High Pressure Stainless Steel Nipples - F250C
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Pressure Coned-and-Threaded Nipples are designed for rapid system make-up, featuring pre-cut, Type 316 stainless steel construction with precision coned-and-threaded connections. Available in various sizes and lengths, these nipples ensure secure fits for Autoclave high pressure valves and fittings. With a working pressure of 60000 psi at 100°F, these nipples offer reliability, durability, and exceptional performance. Custom lengths are also available for tailored solutions to meet specific project requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Drilling Positions Dimension Q
3.9 mm
Drilling Positions Dimension R
63.1 mm
Drilling Positions Dimension S
59.2 in
Drilling Positions Dimension T 02
89.5 mm
Drilling Positions Dimension U 02
57 mm
Drilling Positions Dimension V 02
33 mm
Drilling Positions Dimension W 02
38 mm
Manufacturing Notes 0

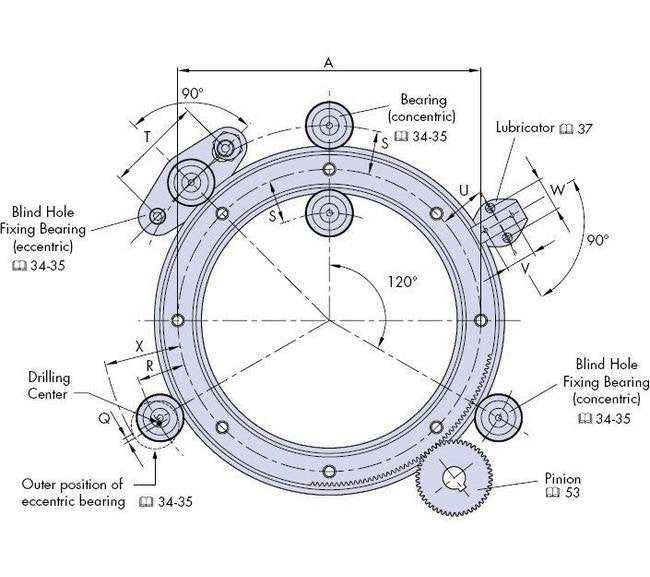

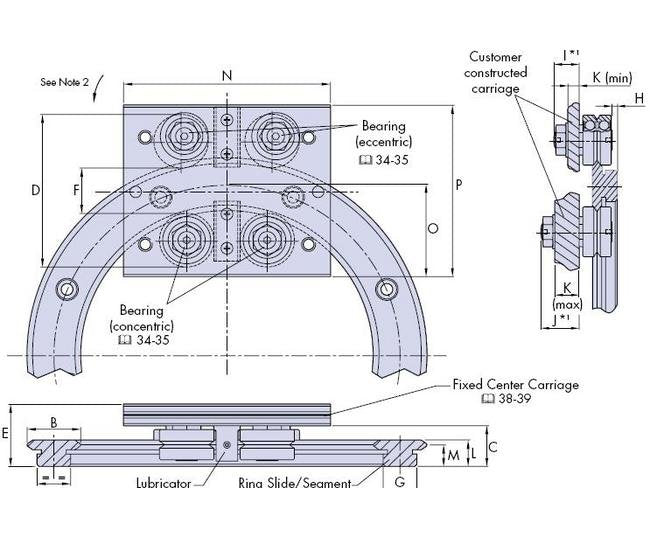

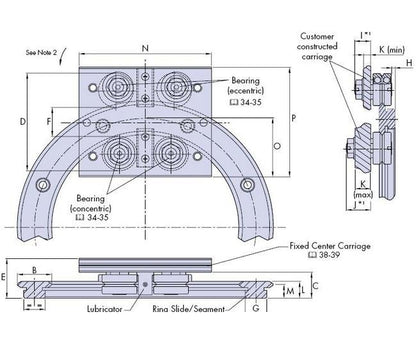

For Dimension I and J : Two lengths of stud are available for each size of bearing. Choose according to required carriage thickness.For 2 : Offset holes in carriage for eccentric bearings necessitate adjustment in direction of arrow shown.For Drilling Position : Exact theoretical values have been given for 'Q', 'R' and 'S'. Positional accuracy of dimension 'S' will determine the axis of the ring. Positional accuracy for dimensions 'Q' and 'R' are not normally critical. Holes for bearing studs should be reamed to tolerance F6 for a sliding fit.
Specifications Dimension A
1033 mm
Specifications Dimension B
76 mm
Specifications Dimension D
172.8 mm
Specifications Dimension E
58.5 mm
Specifications Dimension F
64.4 mm
Specifications Dimension G
50.5 mm
Specifications Dimension H
3.8 mm
Specifications Dimension I
17.8 mm
Specifications Dimension J
30 mm
Specifications Dimension K Max
20.4 mm
Specifications Dimension K Min
5.7 mm
Specifications Dimension L
24 mm
Specifications Dimension M
19.5 mm
Specifications Dimension N
210 mm
Specifications Dimension O
96 mm
Specifications Dimension P
185 mm
Specifications Dimension X
95.6 mm
Specifications For Use With Bearing
J54
