High Pressure Stainless Steel O-Ring Check Valve
High Pressure Stainless Steel O-Ring Check Valve
SKU:EXT-fd7bd6
Ensure precise unidirectional flow control with our High Pressure Stainless Steel O-Ring Check Valve, rated for 60000 psi and suitable for high-temperature applications.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
High Pressure Stainless Steel O-Ring Check Valve
$199.99
Quantity: 1
Claim Your Seller Account
High Pressure Stainless Steel O-Ring Check Valve
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Pressure Stainless Steel O-Ring Check Valve is designed to offer reliable unidirectional flow control and tight shut-off for both liquids and gases, ensuring high performance in demanding applications. Constructed with premium 316 Stainless Steel and equipped with Viton O-rings (or optional Buna-N or Teflon), this valve operates at temperatures up to 500°F (260°C) with a cracking pressure of 20 psi (1.38 bar). With a pressure rating of 60000 psi (4136.79 bar) and precise dimensions, this valve excels in high-pressure environments while maintaining superior durability. Ideal for a wide range of industrial and institutional uses, this check valve guarantees optimal performance and longevity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

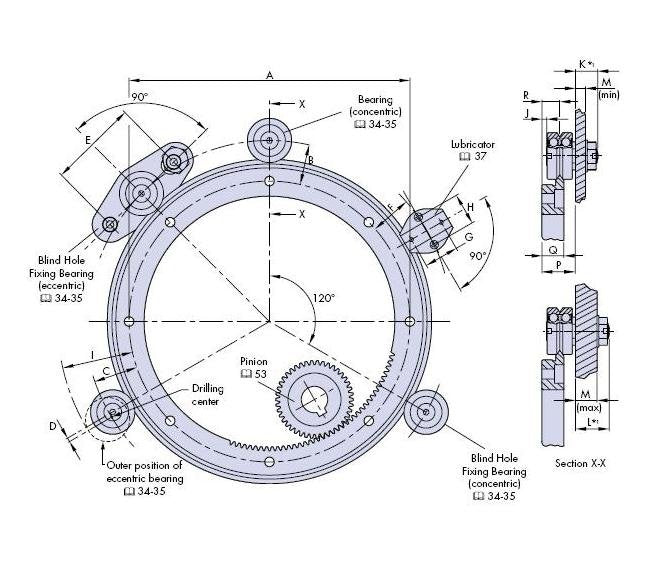

Drilling Positions Dimension B
16.7 mm
Drilling Positions Dimension C
18.5 mm
Drilling Positions Dimension D
1.8 mm
Drilling Positions Dimension E
38 mm
Drilling Positions Dimension F
17.5 mm
Drilling Positions Dimension G
13 mm
Drilling Positions Dimension H
13 mm
Manufacturing Notes 0
For Dimension K and L : Short or long stud lengths are available for each size of bearing. Choose according to the required mounting plate thickness.For Drilling Position : Exact theoretical values have been given for `B`, `C` and `D`. Positional accuracy of dimension `B` will determine the axis of the ring. Positional accuracy for dimensions `C` and `D` are not normally critical. Holes for bearing studs should be reamed to tolerance F6 for a sliding fit.
Specifications Dimension A
204.8 mm
Specifications Dimension I
30.1 mm
Specifications Dimension J
2.4 mm
Specifications Dimension K
7.4 mm
Specifications Dimension L
14 mm
Specifications Dimension M Max
10 mm
Specifications Dimension M Min
2.4 mm
Specifications Dimension P
14.75 mm
Specifications Dimension Q
10 mm
Specifications Dimension R
8 mm
Specifications For Use With Bearing
J18
