High Pressure Stainless Steel Solenoid Valve - Series 30800
High Pressure Stainless Steel Solenoid Valve - Series 30800
SKU:ATK-21e3ca
High-pressure stainless steel solenoid valve with wide fluid compatibility. For high-performance fluid control.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
High Pressure Stainless Steel Solenoid Valve - Series 30800
$289.99
Quantity: 1
Claim Your Seller Account
High Pressure Stainless Steel Solenoid Valve - Series 30800
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 30800 Series Solenoid Valve is a high-pressure stainless steel valve designed for a variety of fluid applications. With a pressure range of 0 to 3000 psig, this valve features stainless steel construction on all wetted parts, semi-direct lift action for operation down to zero pressure differential, and a wide temperature range from -423º F to +500º F. It is suitable for handling air, gasses, liquids, hydraulic fluids, steam, cryogenic fluids, and corrosive fluids. The valve comes with optional seat materials to suit different fluid types and pressures, making it a versatile and reliable choice for industrial applications.
Product Specifications
Specifications Body Material
Stainless Steel
Specifications Body Style
Threaded Cylinder Cap
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1 in
Specifications Connection Type
Female NPT

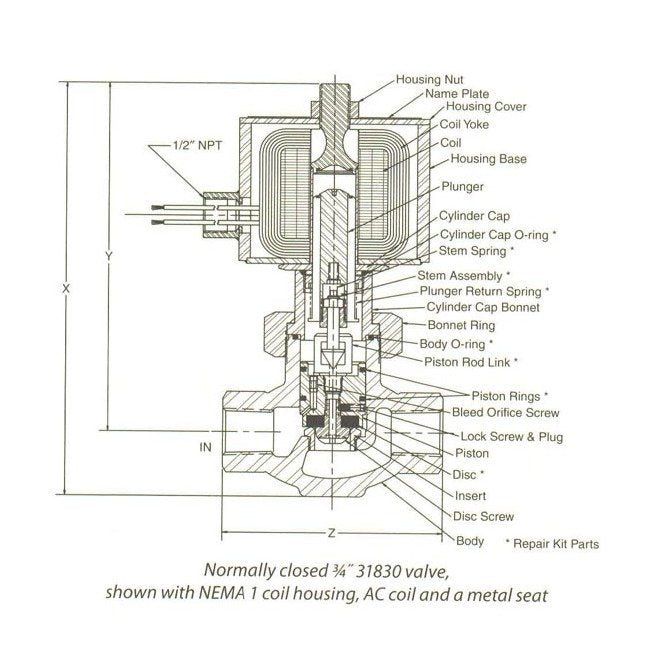

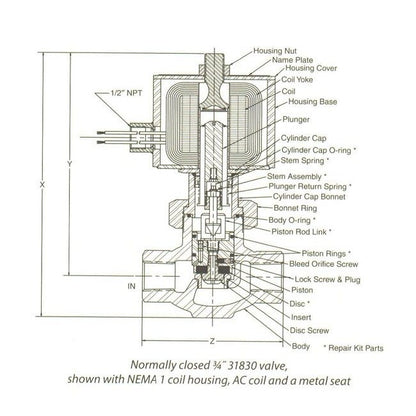

Specifications Dim X
9.5 in
Specifications Dim Y
8 1/16 in
Specifications Dim Z
5.25 in
Specifications Flow Coefficient Cv
12.5
Specifications Fluid Media Type
Liquid up to 40 SUS
Specifications Main Seat Orifice
1 in
Specifications Operating Pressure
0 to 500 psig | 0 to 34.5 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Buna N
Specifications Series
30800
Specifications Temperature Range
-65 to 275 ºF | -54 to 135 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
