High Pressure Straight Coupling
High Pressure Straight Coupling
SKU:HEP-c13502
Explore our High Pressure Straight Coupling for secure and leak-free tube connections in high-pressure applications. Pressure rating: 40000 psi.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Pressure Straight Coupling
$49.99
Quantity: 1
Claim Your Seller Account
High Pressure Straight Coupling
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Pressure Straight Coupling from Autoclave Engineers is precision-engineered for seamless tube connections in high-pressure applications. With a pressure rating of 40000 psi, this coupling ensures reliable performance under extreme conditions. Featuring a sturdy construction and a tubing engagement depth of 21.3 mm, it guarantees a secure and leak-free connection. The coupling's specifications meet stringent industry standards, making it an ideal choice for both consumer and institutional buyers seeking durability and performance.
Product Specifications
Manufacturing Notes 0

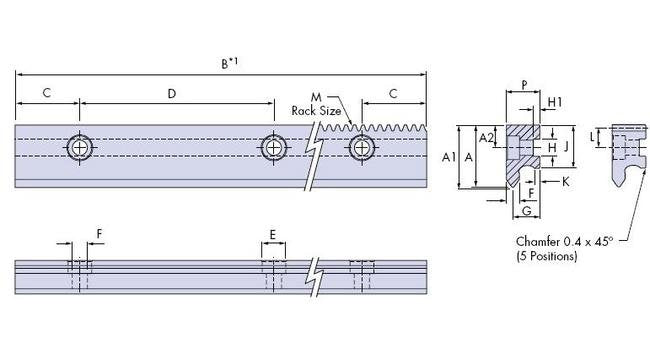

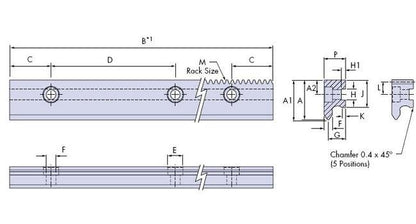

For Dimension B: Standard slide lengths are available in multiples of hole pitch 'D' + (2 x 'C') up to a 4020 mm maximum length. Special length slides can be cut to order.For 2: Slides in their free unmounted state are not necessarily straight. They should be set to the required straightness when bolting down to the mounting surface at assembly.For Dimension A1 and G: For track system requirements dimensions 'A1' and 'G' will be matched with corresponding dimensions 'F' and 'I', 46.For Dimension M: Single edge slides with a rack, will be supplied in lengths that correspond to multiplies of rack pitch. The position of the ends of the slides is accurately controlled to coincide with the center of the rack root to give perfect running joints for slides and ring segments.
Specifications Dimension A
21 mm
Specifications Dimension A1
21.37 mm
Specifications Dimension A2
8.5 mm
Specifications Dimension C
30 mm
Specifications Dimension D 02
90 mm
Specifications Dimension E
10 mm
Specifications Dimension E Depth
5.1 mm
Specifications Dimension F
4.7 mm
Specifications Dimension G
10 mm
Specifications Dimension H1
2.5 mm
Specifications Dimension H 005 000
6 mm
Specifications Dimension J 0025
16 mm
Specifications Dimension K
2.6 mm
Specifications Dimension L
7.4 mm
Specifications Dimension M Module
1 mm
Specifications Dimension P
12.35 mm
Specifications For Use With Curved Segments
TRIS278, TRES376
