High Pressure Straight Coupling - F562C

Name: High Pressure Straight Coupling - F562C
Brand: Bishop-Wisecarver
SKU: HEP-024321
Price: 49.99 USD
Availability: OutOfStock

SKU:HEP-024321

High Pressure Straight Coupling - F562C: Reliable, high-pressure connection with 60000 psi rating. Precision-engineered for durability and compliance with industry standards.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The High Pressure Straight Coupling (F562C) from Autoclave Engineers is engineered for precision and durability. With a pressure rating of 60000 psi, this coupling ensures reliable connections in high-pressure environments. Featuring dimensions tailored for optimal fit and function, including an outside diameter tube of 14.29mm and tubing engagement depth of 22.0mm, this coupling guarantees a secure and leak-free connection. Compliant with industry standards, the coupling is perfect for a wide range of applications in both consumer and institutional settings.

Product Specifications

Manufacturing Notes 0

For Straight Slides: Some distortion may be present in segments in their free unmounted state. This may be overcome by bolting to the mounting surface and setting to adjacent slides using the keyway alignment facility 41. True Shape segments are available on request

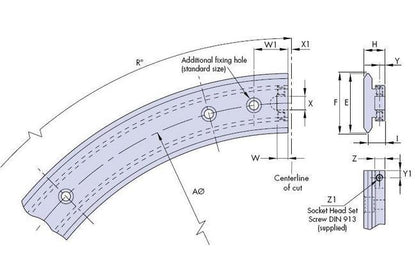

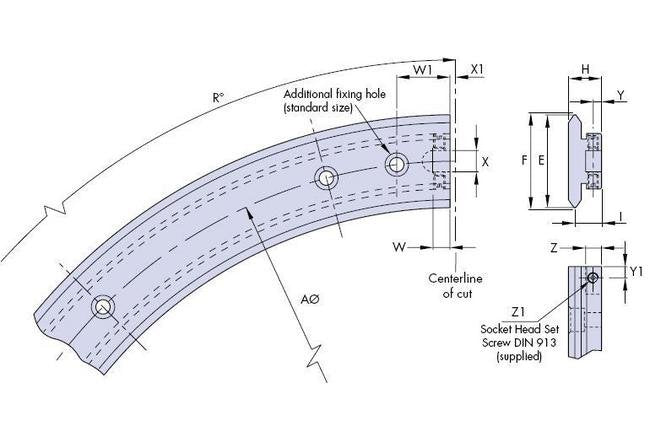

Specifications Dimension A

468 mm

Specifications Dimension E

44 mm

Specifications Dimension F

44.74 mm

Specifications Dimension H

15.5 mm

Specifications Dimension I 0025

12.5 mm

Specifications Dimension R

90 Âº | 180 Âº

Specifications Dimension W

8 mm

Specifications Dimension W1

25 mm

Specifications Dimension X

10 mm

Specifications Dimension X1 02

2.5 mm

Specifications Dimension Y

4 mm

Specifications Dimension Y1

6 mm

Specifications Dimension Z

7.5 mm

Specifications Dimension Z1

M5 x 6
