High Pressure Straight Coupling Union

Name: High Pressure Straight Coupling Union
Brand: Bishop-Wisecarver
SKU: HEP-b79f2b
Price: 49.99 USD
Availability: OutOfStock

SKU:HEP-b79f2b

High Pressure Straight Coupling Union - Precision-engineered for secure, leak-free connections in high-pressure environments. Compliant with industry standards.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The High Pressure Straight Coupling Union by Autoclave Engineers is precision-engineered for demanding industrial applications. This coupling ensures a secure and leak-free connection with its F312C150 connection type, suitable for high-pressure environments up to 150,000 psi. With an outside diameter tube of 7.94mm and tubing engagement depth of 30.0mm, this coupling guarantees optimal performance and reliability. Compliant with industry standards, it offers unmatched durability and efficiency for a wide range of applications.

Product Specifications

Manufacturing Notes 0

For Straight Slides: Some distortion may be present in segments in their free unmounted state. This may be overcome by bolting to the mounting surface and setting to adjacent slides using the keyway alignment facility 41. True Shape segments are available on request

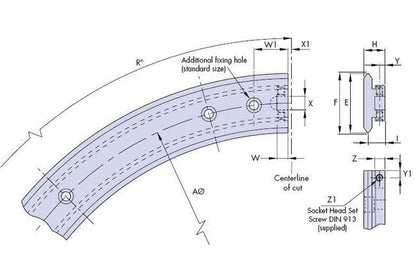

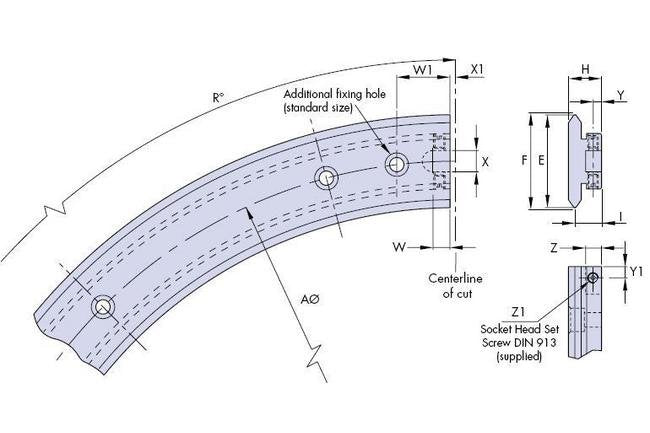

Specifications Dimension A

799 mm

Specifications Dimension E

76 mm

Specifications Dimension F

76.74 mm

Specifications Dimension H

24 mm

Specifications Dimension I 0025

19.5 mm

Specifications Dimension R

90 Âº | 180 Âº

Specifications Dimension W

10 mm

Specifications Dimension W1

30 mm

Specifications Dimension X

18 mm

Specifications Dimension X1 02

2.5 mm

Specifications Dimension Y

6 mm

Specifications Dimension Y1

7 mm

Specifications Dimension Z

11.5 mm

Specifications Dimension Z1

M8 x 16

High Pressure Straight Coupling Union
