High Pressure Straight Union Coupling - F312C150
High Pressure Straight Union Coupling - F312C150
SKU:HEP-1efeb9
Precision-engineered High Pressure Straight Union Coupling for extreme pressure applications up to 150,000 psi. Secure connection with 7.94mm tubing diameter.
Regular price
$65.99
Regular price
Sale price
$65.99
Unit price
per
Initiate Order
High Pressure Straight Union Coupling - F312C150
$65.99
Quantity: 1
Claim Your Seller Account
High Pressure Straight Union Coupling - F312C150
$65.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Pressure Straight Union Coupling, designed by Autoclave Engineers, is built to withstand extreme pressures up to 150,000 psi. Crafted with precision, this coupling ensures a secure connection with an outside diameter tubing of 7.94mm. Featuring a durable construction and a tubing engagement depth of 1.18 inches, this coupling guarantees a leak-free performance. Ideal for high-pressure systems, this coupling is a reliable solution for industrial and government applications, meeting stringent procurement standards and specifications.
Product Specifications
Manufacturing Notes 0

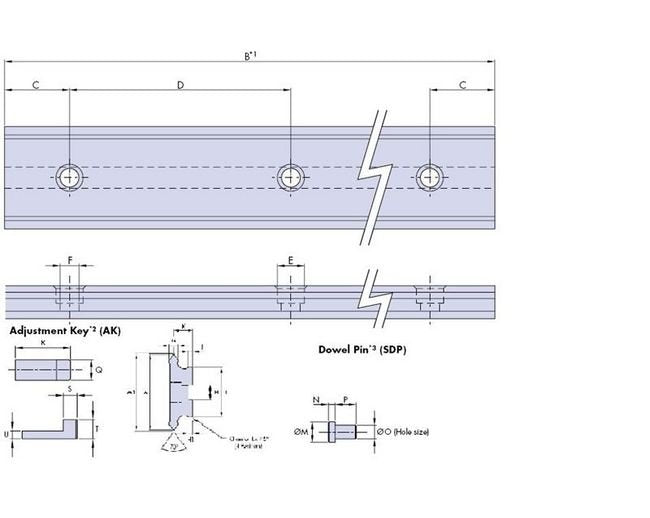

For Dimension B: Standard slide lengths are available in multiples of hole pitch 'D' + (2 x 'C') up to a maximum length per 'B' dimension in table above. Special length slides can be cut to order.For Adjustment Key: Adjustment keys are required at every join between straight slide and curved slide. Please order accordingly (see ordering details). Please note that 'Q' dimension for the TNMS 12 & TNV 20 slides is stepped one end to fit keyway 'H'.For Dowel Pin: Please note that dowel pins for the TNMS 12 slide are not stepped.For Mounting Surface: Slides in their free unmounted state are not necessarily straight. They should be set to the required straightness when bolting down to the mounting surface at assembly.For Dimension A1 & k : For track system requirements dimensions 'A1' and 'K' will be matched with corresponding dimensions 'F' and 'I'.
Specifications Density
1.0 kg/m
Specifications Dimension A
20 mm
Specifications Dimension A1
20.37 mm
Specifications Dimension B Max
4020 mm
Specifications Dimension C 02
30 mm
Specifications Dimension D
90 mm
Specifications Dimension E
8 mm
Specifications Dimension E Depth
4 mm
Specifications Dimension F
4.5 mm
Specifications Dimension G
4.21 mm
Specifications Dimension H1
2 mm
Specifications Dimension H 005 000
5 mm
Specifications Dimension I 0025
12 mm
Specifications Dimension J
1.75 mm
Specifications Dimension K
8 mm
Specifications Dimension L
0.3 mm
Specifications Dimension M M6
5 mm
Specifications Dimension M Tolerance M6
+0.004 mm | +0.012 mm
Specifications Dimension N
1.75 mm
Specifications Dimension O K6
4 mm
Specifications Dimension O Tolerance K6
+0.002 mm | -0.006 mm
Specifications Dimension P
6 mm
Specifications Dimension Q
3.5 mm
Specifications Dimension R
30 mm
Specifications Dimension S
5.5 in
Specifications Dimension T
4 mm
Specifications Dimension U
1.7 mm
Specifications Din912 Not Supplied
M4
