High Pressure Trunnion Ball Valve - SBTH Series
High Pressure Trunnion Ball Valve - SBTH Series
SKU:SBT-c3145b
SBTH Series Trunnion Ball Valve for high-pressure applications, PCTFE Seats, Stainless Steel Body, 6000 psi, 0-450°F
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
High Pressure Trunnion Ball Valve - SBTH Series
$149.99
Quantity: 1
Claim Your Seller Account
High Pressure Trunnion Ball Valve - SBTH Series
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBTH Series 4.8mm Orifice Size and 6mm SUPERLOK® Inlet End Connections Two-Way Trunnion Ball Valve is a reliable solution for shut-off and switching operations in high-pressure applications. Featuring PEEK trunnion bearings for extended cycle life, this valve offers a compact design with spring-loaded seats for low operating torques. With a pressure rating of up to 6000 psi and a temperature range from 0 to 450°F, it ensures durability and optimal performance. Suitable for extreme conditions, this valve meets stringent industry standards for quality and longevity.
Product Specifications
Features Features
PEEK trunnion bearings for longer cycle lifeTwo-way and three way designsBlow-out resistant two-piece ball/stemLow operating torquePanel mountable to 9.7mm thicknessHandle indicates direction of flowPositive handle stops100% factory testedCompact, maximum flow design
Note Note

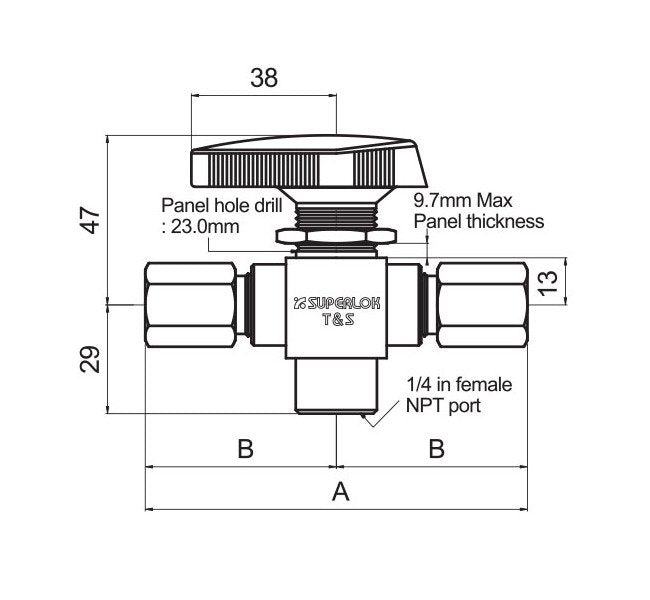

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Configurations
Two-Way Valve
Technical Specs Body Material
Stainless Steel
Technical Specs Dimension A
105 mm
Technical Specs Dimension B
52.6 mm
Technical Specs Flow Coefficients Cv
1.6
Technical Specs Inlet End Connections
6 mm Superlok®
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
6 mm Superlok®
Technical Specs Port Connections
1/8 to 1/2 in. and 6 to 12mm Superlok® Tube Fitting or Female National Pipe Thread (FNPT) end connection
Technical Specs Pressure Rating With Polychlorotrifluoroethylene
6000 psi | 414 bar
Technical Specs Temperature Rating
0 to 450 ºF | -17 to 232 ºC
