High Pressure Union Coupling - F1000C43

Name: High Pressure Union Coupling - F1000C43
Brand: Bishop-Wisecarver
SKU: HEP-f29e77
Price: 99.99 USD
Availability: OutOfStock

SKU:HEP-f29e77

Reliable high-pressure Union Coupling for secure connections in industrial applications. Pressure rating: 43000 psi.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The High Pressure Union Coupling - F1000C43 from Autoclave Engineers provides a reliable connection for high-pressure applications. With a pressure rating of 43000 psi and precise dimensions, this coupling ensures a secure fit for optimal performance. Designed with high-quality materials and meeting stringent industry standards, it guarantees durability and efficiency. Suitable for a wide range of industrial settings, this coupling is a top choice for both consumer and institutional buyers.

Product Specifications

Manufacturing Notes 0

For Straight Slides: Some distortion may be present in segments in their free unmounted state. This may be overcome by bolting to the mounting surface and setting to adjacent slides using the keyway alignment facility 41. True Shape segments are available on request

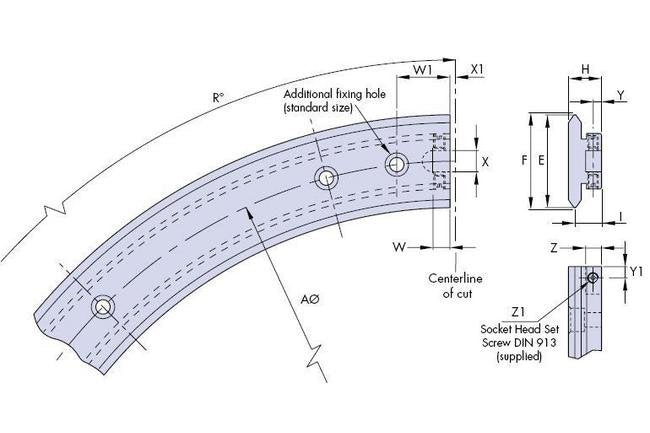

Specifications Dimension A

1501 mm

Specifications Dimension E

76 mm

Specifications Dimension F

76.74 mm

Specifications Dimension H

24 mm

Specifications Dimension I 0025

19.5 mm

Specifications Dimension R

90 Âº | 180 Âº

Specifications Dimension W

10 mm

Specifications Dimension W1

30 mm

Specifications Dimension X

18 mm

Specifications Dimension X1 02

2.5 mm

Specifications Dimension Y

6 mm

Specifications Dimension Y1

7 mm

Specifications Dimension Z

11.5 mm

Specifications Dimension Z1

M8 x 16
