High Pressure Union Coupling - F375C

Name: High Pressure Union Coupling - F375C
Brand: Bishop-Wisecarver
SKU: HEP-aaafba
Price: 59.99 USD
Availability: OutOfStock

SKU:HEP-aaafba

High Pressure Union Coupling for reliable & secure high-pressure connections up to 60000 psi. Durable construction with precise dimensions for optimum performance.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The High Pressure Union Coupling (F375C) by Autoclave Engineers is a robust straight coupling designed for high-pressure applications up to 60000 psi. With an outside diameter of 3/8 inches and a sturdy construction, this coupling ensures a secure connection with a minimum opening of 0.125 inches. The precise dimensions, including typical hex sizes and tubing engagement depth, guarantee a perfect fit and optimal performance. Ideal for industrial settings requiring reliable and durable high-pressure fittings, this union coupling delivers quality and performance that meets stringent standards.

Product Specifications

Manufacturing Notes 0

For Straight Slides: Some distortion may be present in segments in their free unmounted state. This may be overcome by bolting to the mounting surface and setting to adjacent slides using the keyway alignment facility 41. True Shape segments are available on request

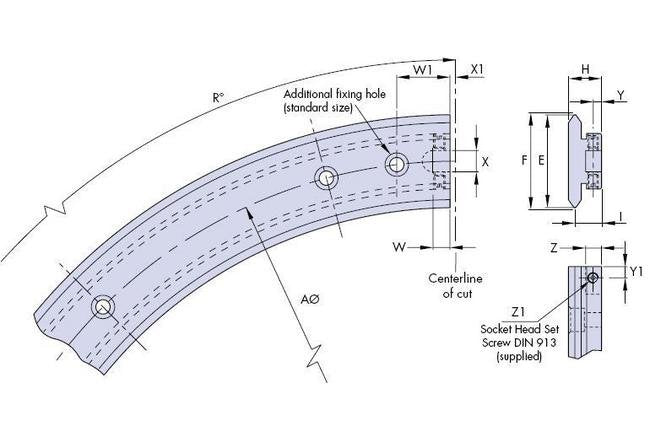

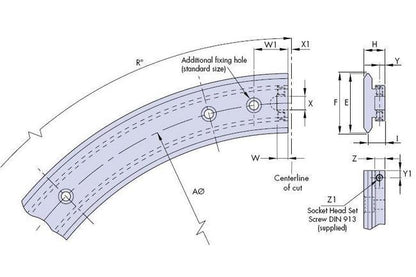

Specifications Dimension A

612 mm

Specifications Dimension E

44 mm

Specifications Dimension F

44.74 mm

Specifications Dimension H

15.5 mm

Specifications Dimension I 0025

12.5 mm

Specifications Dimension R

90 Âº | 180 Âº

Specifications Dimension W

8 mm

Specifications Dimension W1

25 mm

Specifications Dimension X

10 mm

Specifications Dimension X1 02

2.5 mm

Specifications Dimension Y

4 mm

Specifications Dimension Y1

6 mm

Specifications Dimension Z

7.5 mm

Specifications Dimension Z1

M5 x 6
