High-Pressure Universal Check Valve - 1-1/4" NPT, 3.50 psi Cracking Pressure
High-Pressure Universal Check Valve - 1-1/4" NPT, 3.50 psi Cracking Pressure
SKU:U1A-020c8b
Premium High-Pressure Check Valve for tough industrial applications. Metal-to-Metal seat, 10K psig rating, ISO 9001 & CE certified.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
High-Pressure Universal Check Valve - 1-1/4" NPT, 3.50 psi Cracking Pressure
$79.99
Quantity: 1
Claim Your Seller Account
High-Pressure Universal Check Valve - 1-1/4" NPT, 3.50 psi Cracking Pressure
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

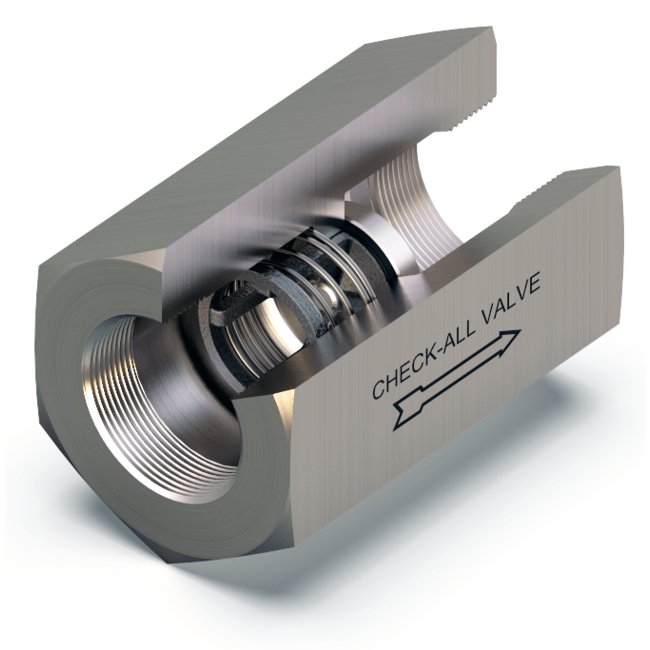

The High-Pressure Universal Check Valve in U1 Style features a precision-machined one-piece body for robust performance in high-pressure applications. Ideal as a relief valve or vacuum breaker, it offers a metal-to-metal seat and versatile spring options for customized settings. Built from premium 316 Stainless Steel as standard, it boasts a non-shock pressure rating of 10,000 psig at 100°F. Certified for ISO 9001 and CE compliance, this valve guarantees reliability and longevity in critical industrial environments.
Product Specifications
Additional Information
The Wafer Insert check valve can also be used as a low-pressure relief valve or vacuum breaker by simply using the desired spring settings.
Note
Many valves in this series can be supplied with B16.34 certification. Consult the factory for more information.Made in USA.
Specifications Body Material
316 Stainless Steel = SS | Alloy 20 = A2 | Alloy B = HB | Alloy C-276 = HC | Carbon Steel = CS | Monel® 400 or Alloy R405 = MO | Titanium = TI
Specifications Body Material Availability
316 Stainless Steel (SS) - Standard | Alloy 20 (A2) - Semi-Standard | Alloy B (HB) - Contact the factory for these or other materials | Alloy C-276 (HC) - Semi-Standard | Carbon Steel (CS) - Standard | Monel® 400 or Alloy R405 - Semi-Standard | Titanium (TI) - Contact the factory for these or other materials
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
1-1/4 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
10,000 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Seat Material
"Metal-to-Metal" = MT
Specifications Size Code
I
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy B = HB | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
3.50 psi
Specifications Valve Style
National Pipe Thread (NPT) Threads = U1
