High-Pull Small Round Flat Faced Electromagnet
High-Pull Small Round Flat Faced Electromagnet
SKU:SMA-d466ed
Powerful Small Round Flat Faced Electromagnet, 900lb pull capacity, versatile for manual or automated use
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
High-Pull Small Round Flat Faced Electromagnet
$349.99
Quantity: 1
Claim Your Seller Account
High-Pull Small Round Flat Faced Electromagnet
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

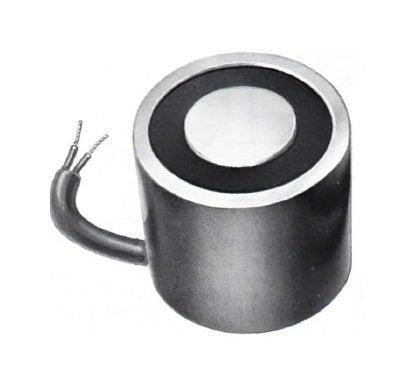

The Small Round Flat Faced Electromagnet is a powerful solution for both manual and automated applications, boasting a pull capacity of 900 lbs on low carbon steel. With a diameter of 4 inches and a height of 3 inches, this electromagnet is designed for precision and efficiency. It operates on 12V standard DC voltage and offers optional DC voltage ratings of 24V and 110V. For enhanced safety and control, Rectifier-Controllers are recommended to ensure clean workpiece release. Consult the factory for custom sizes and applications to meet your specific needs.
Product Specifications
Additional Information 0
Rectifier-Controllers are required to convert AC line current to DC, provide switching, and incorporate a release function which allows clean release of the workpiece.
Manufacturing Notes 0
Consult factory for additional sizes, modifications and custom applications.
Specifications Diameter A
4 in
Specifications Height B
3 in
Specifications Location Of Leads E
3/8
Specifications Net Weight
9 lb
Specifications Optional Dc Voltage Ratings
24 V | 110 V
Specifications Power
33 W
Specifications Pull Capacity
900 lb
Specifications Standard Dc Voltage
12 V
Specifications Thread C
3/8 to 16 in
Specifications Thread Depth D
5/8 in
Specifications Type
2
