High-Quality Carbon Steel Rod Ends
High-Quality Carbon Steel Rod Ends
SKU:ROD-03890b
Premium Carbon Steel Rod Ends for automotive, industrial, and diverse applications. High-performance materials and precise engineering for durability.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
High-Quality Carbon Steel Rod Ends
$24.99
Quantity: 1
Claim Your Seller Account
High-Quality Carbon Steel Rod Ends
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Carbon Steel Rod Ends are meticulously crafted with precision engineering and high-quality materials to ensure exceptional performance and durability. Featuring 6061-T6 Aluminum body material and 52100 Bearing Steel, Heat Treated HRC58-64 Hard Chrome Plated ball material, these rod ends are designed for versatility and reliability. With variants available for both Male and Female, Left and Right configurations, they are ideal for automotive vehicles, industrial machines, and various other industries. Meeting stringent industry standards, these rod ends offer superior load-bearing capacity, precise dimensions, and corrosion resistance for long-lasting functionality.
Ready to Grow Without Cash Flow Constraints?

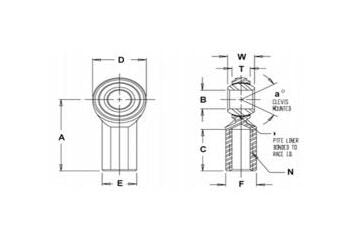

Product Specifications
Specifications Approx Weight
0.05 lbs
Specifications A Length 0015 0015
1.312 in
Specifications A Mis Angle Ref
27
Specifications Ball
0.500 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Carton Steel, Silver Or Yellow Zinc Plated
Specifications B Dia 00025 00005
0.2500 in
Specifications C Length 0062 0031
0.687 in
Specifications D Dia 0010 0010
0.750 in
Specifications Liner Material
Teflon Fabric Lined
Specifications N Thread Unf 3a
1/4-28
Specifications Rod End Variants
RET-4T
Specifications Static Radial Load
3,878 lbs
Specifications Thread Type
Right
Specifications Type
Female
Specifications T Width
0.250 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.375 in
