High-Quality Inline Check Valves

High-Quality Inline Check Valves

ACC-7e21db

Reliable In-Line Check Valves for industrial flow control. ANSI/ASME certified, 150 gpm flow, 5000 psi max pressure.

$89.99
$89.99
Sale

Initiate Order

High-Quality Inline Check Valves

High-Quality Inline Check Valves

$89.99

Quantity: 1

Claim Your Seller Account

High-Quality Inline Check Valves

High-Quality Inline Check Valves

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

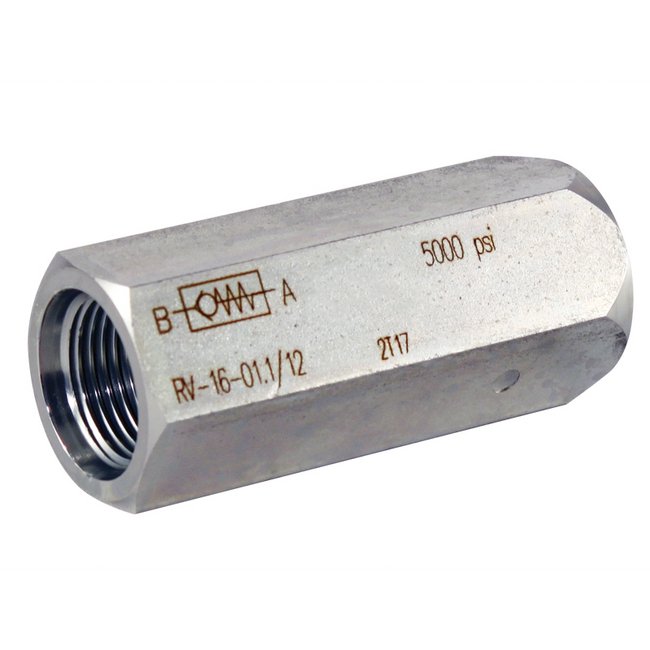

Our In-Line Check Valves are designed for reliable flow control in industrial settings. With a Model Code RV-16-01.X/5-65, these valves feature NPTF - ANSI/ASME 1.20.3 Taper Pipe Threads and a carbon steel housing for durability. Operating at a maximum pressure of 5000 psi, these valves offer a flow rate of 150 gpm. The metal to metal seal design ensures a secure fit, while meeting American National Standards Institute (ANSI) and American Society of Mechanical Engineers (ASME) certifications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

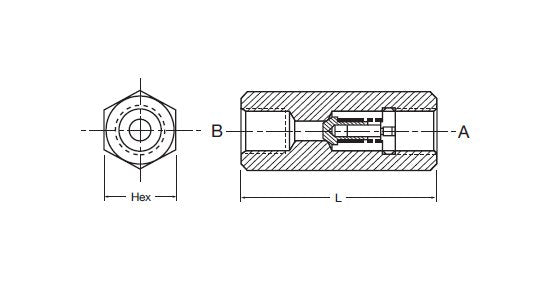

Dimensions Dimension L
3.46 in | 88 mm
Dimensions Hex Size
1 7/16 in | 36 mm
Features 0
9 Sizes, 1/8" - 2"NPT or SAE O-Ring connections and manifold mountingMetal to metal seal design for poppetHardened and ground steel poppet
Note 0
Not recommended for high-cycle applications!Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
4.5 bar | 65 psi
Specifications Division
ACCESSORIES
Specifications End Size
3/4 in.
Specifications End Type
NPT
Specifications Flow
150 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)/American Society of Mechanical Engineers (ASME)
Specifications Kinematic Viscosity At 86f30c
335 SUS
Specifications Maximum Temperature At Full Pressure
212 ºF
Specifications Minimum Temperature At Full Pressure
-4 ºF
Specifications Model Code Description
RV-16-01.X/5- 65
Specifications Mounting Type
Inline Mounting
Specifications Nominal Sizes
16
Specifications Operating Pressure Max
345 bar | 5000 psi
Specifications Port Configuration
NPTF - ANSI/ASME 1.20.3 Taper Pipe Thread
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
3/4 in.
Specifications Second End Type
NPT
Specifications Type
Flow Control Valve
Specifications Weight
0.1 kg | 0.22 lb
