The Male Hex Nipple NPT to BSP Taper fitting by Parker sets the standard for quality and precision. Specifically designed to facilitate seamless connections between components and systems utilizing both NPT and ISO thread configurations, this fitting ensures reliable performance. Crafted from stainless steel or brass under meticulous quality control, it offers versatile compatibility and enduring durability. The fitting is engineered to meet the most commonly used ISO thread forms for pressure-tight joints, enhancing efficiency and safety in industrial applications.
Product Specifications

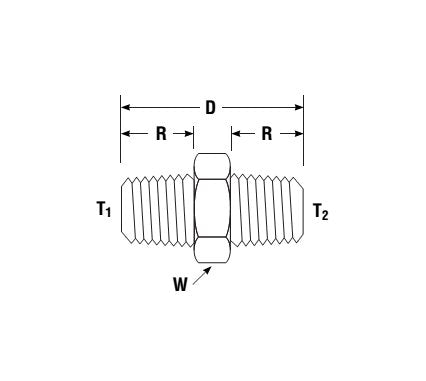

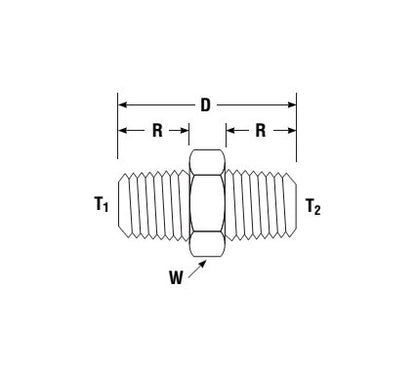

Dimensions Bspt Thread T2
3/8-19
Dimensions Connection Type
MNPT to BSPT
Dimensions D
1.45 in
Dimensions Npt Thread T1
3/8-18
Dimensions R
.56 in
Dimensions Working Pressure Brass
4000 psi | 280 bar
Dimensions Working Pressure Stainless Steel
7200 psi | 500 bar
Dimensions W Hex
3/4 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
