High-Quality Weld-On Hinges with AL Body & 304 SS Pin
High-Quality Weld-On Hinges with AL Body & 304 SS Pin
SKU:HIN-7acf8d
Premium weld-on hinges for heavy loads. AL body, 304 SS pin & grease fitting. D: 0.315", H: 0.61". Permanent welding for security.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High-Quality Weld-On Hinges with AL Body & 304 SS Pin
$29.99
Quantity: 1
Claim Your Seller Account
High-Quality Weld-On Hinges with AL Body & 304 SS Pin
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Discover unmatched durability and reliability with our weld-on hinges featuring an AL body, 304 SS pin, and bushing with grease fitting for heavy load applications. The precision welding capability ensures a secure and permanent attachment, eliminating concerns about detachment or misalignment. With dimensions of D: 0.315", H: 0.61", L: 3.15", and B Width: 0.51", these hinges are engineered to meet the most demanding requirements.
Product Specifications
Specifications Alternate Pn
AFSSP-080BRG / F
Specifications B Width
0.51
Specifications D
0.315
Specifications H
0.61
Specifications L
3.15
Specifications L1
1.29 in.
Specifications L2
1.29 in
Specifications Material
AL Body, 304 SS Pin & Bushing w / Grease Fitting
Specifications Note

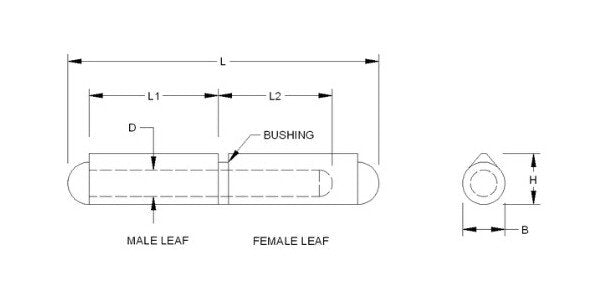

The image above is a graphic representation only
